Engine Wire Harness (A/T) (Transmission section)

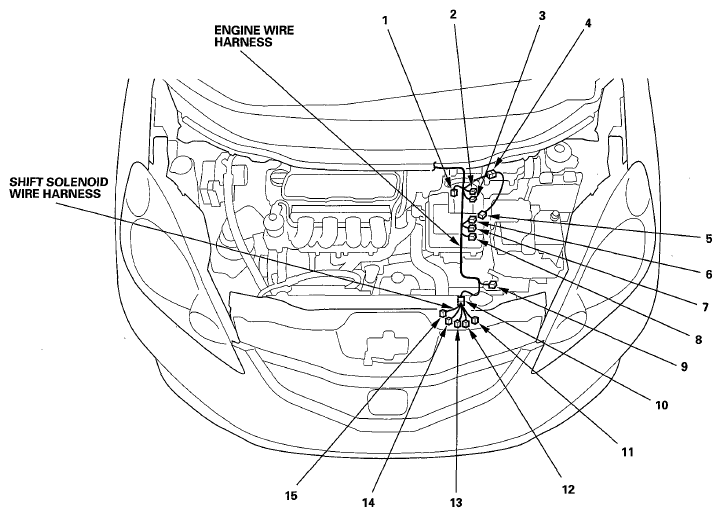

ENGINE WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| A/T clutch pressure control solenoid valve A | 6 | 2 | Transmission housing | - | - |
| A/T clutch pressure control solenoid valve B | 8 | 2 | Transmission housing | - | - |
| A/T clutch pressure control solenoid valve C | 7 | 2 | Transmission housing | - | - |
| Input shaft (mainshaft) speed sensor | 2 | 3 | Transmission housing | - | - |
| Output shaft (countershaft) speed sensor | 3 | 3 | Transmission housing | - | - |
| 2nd clutch pressure switch | 1 | 1 | Transmission housing | - | - |
| 3rd clutch pressure switch | 9 | 1 | Transmission housing | - | - |
| C105 | 10 | 8 | On the transmission range housing | Shift solenoid wire harness | - |
| C106 | 4 | 10 | On the transmission range housing | Transmission range switch subharness | - |
