Cable Reel Subharness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Cable Reel Subharness

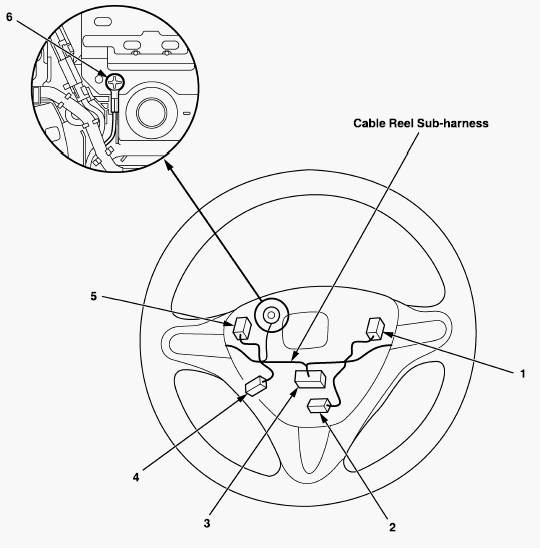

CABLE REEL SUBHARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Cable Reel |
3 |
20 |
Steering Wheel |
- |
- |
| HFL Navigation voice control switch |
4 |
5 |
Steering Wheel |
- |
|
| HFL Switch |
4 |
5 |
Steering Wheel |
- |
|
| Horn Switch |
2 |
1 |
Steering Wheel |
- |
Five position Transmission |
| Paddle Shifter - (Downshift switch |
5 |
2 |
Steering Wheel |
- |
Five position Transmission |
| Paddle Shifter + (Upshift switch |
1 |
2 |
Steering Wheel |
- |
| G551 |
6 |
- |
Steering Wheel |
- |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
