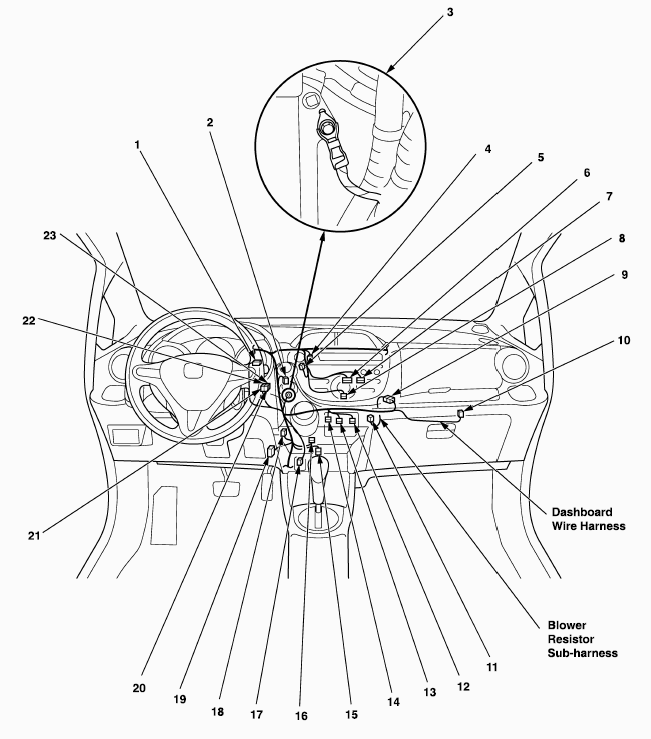

Blower Resistor Subharness (Without Navigation)
BLOWER RESISTOR SUBHARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Blower resistor |
11 |
4 |
Under right side of dash |
- |
- |
| C501 |
9 |
8 |
Under right side of dash |
Dashboard wire harness |
- |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
