Blower Resistor Subharness (With Navigation)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Blower Resistor Subharness (With Navigation)

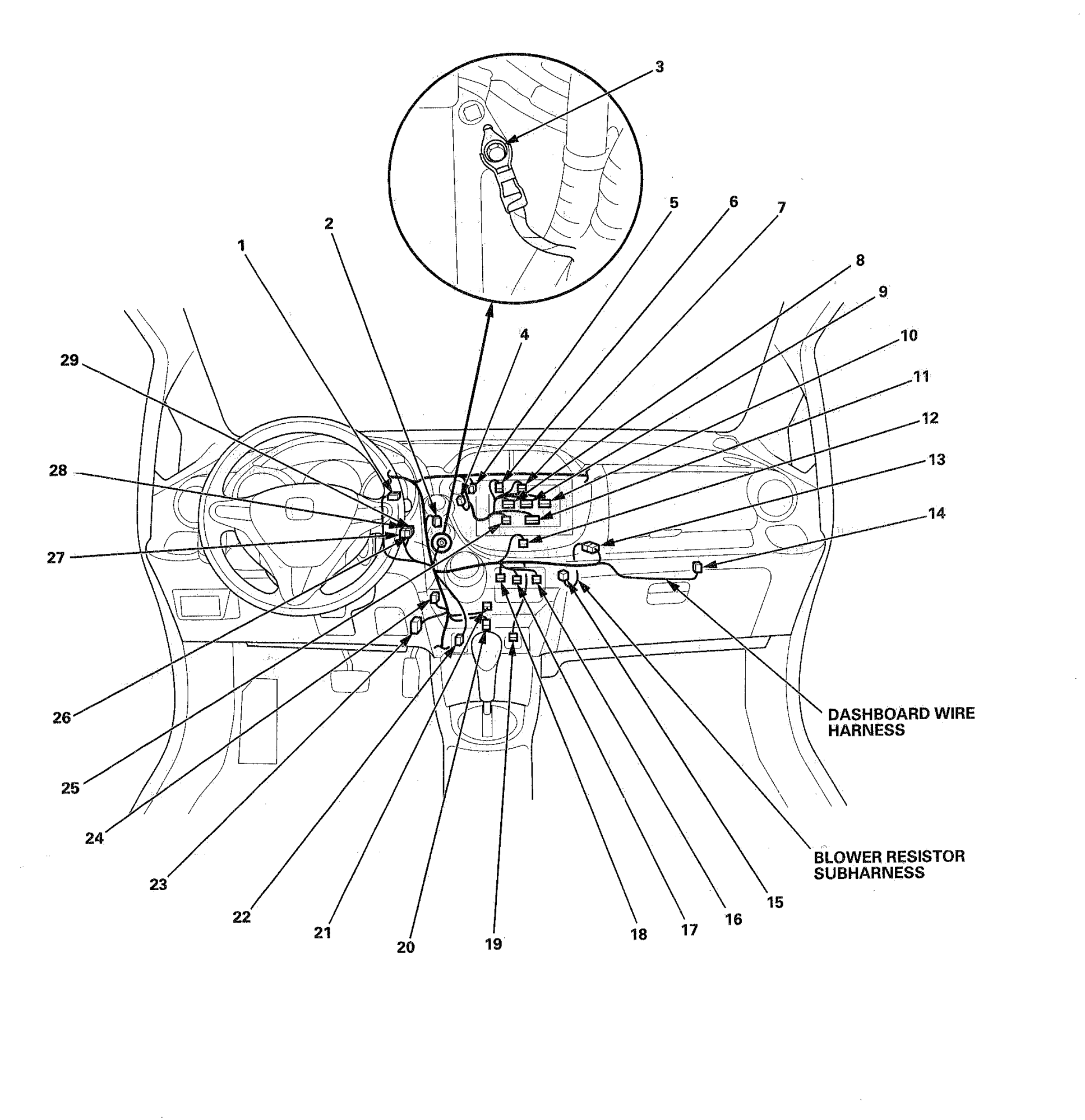

BLOWER RESISTOR SUBHARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Blower resistor |
15 |
4 |
Under right side of dash |
- |
- |
| C501 |
13 |
8 |
Under right side of dash |
Dashboard wire harness |
- |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
