Battery Ground Cable

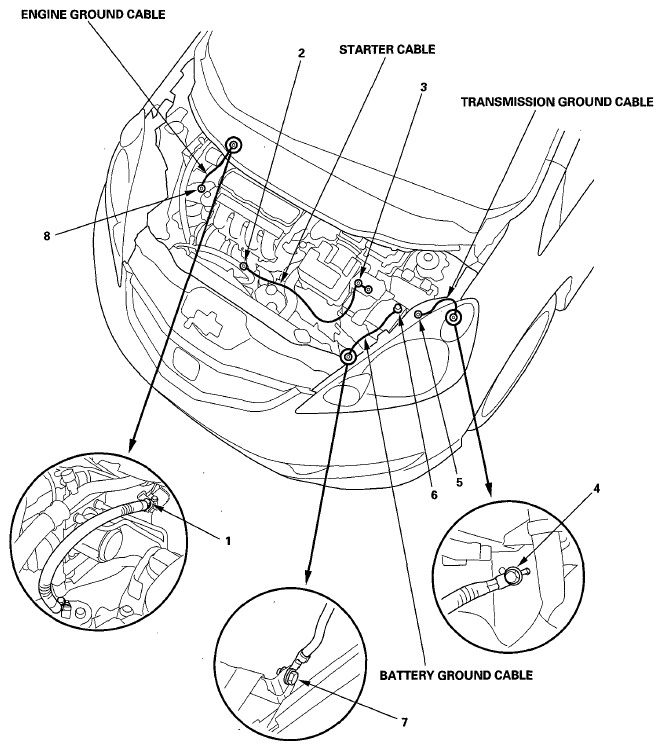

BATTERY GROUND CABLE CONNECTOR REFERENCE TABLE
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| (-) |
6 |
- |
Left side of engine compartment |
Battery negative terminal |
- |
| G1 |
7 |
- |
Left side of engine compartment |
Body ground, via battery ground cable |
- |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
