Canada Models: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relays and connect the connectors to the under-dash fuse/relay box (A), then install the under-dash fuse/relay box in the reverse order of removal.

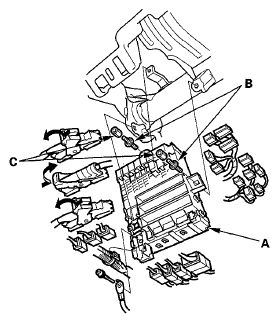

    Fig 1: Identifying Under-Dash Fuse, Relay Box & Stud Bolts
    G05959919Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the double nuts from stud bolts (B), then install the nuts (C) to the stud bolts.
  3. Install the removed parts in the reverse order of removal.
  4. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  5. If the under-dash fuse/relay box is being replaced, do the following with the HDS.
    1. Have all registered keys and the ECM/PCM code.
    2. Connect the HDS to the data link connector (DLC).
    3. Turn the ignition switch to ON (ll).
    4. Select IMMOBI from the System Selection Menu, then select IMMOBILIZER SETUP.
    5. Select REPLACE MPCS/MICU/IMOES.
    6. Do the registration according to the instructions on the HDS screen.
  6. Confirm that all systems work properly.
