For Some Models

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Take care not to scratch the body.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Pry up at the notches (A) with a flat-tip screwdriver wrapped with protective tape to release the hooks (B), then remove the lids (C) from both sides.

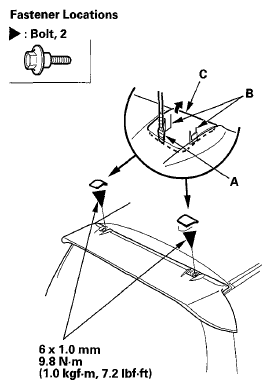

    Fig 1: Lids From Both Sides With Torque Specifications
    G05959715Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts.
  3. Lift up on the tailgate spoiler (A) to detach the pins (B) of the clips from the grommets (C), then remove the spoiler.

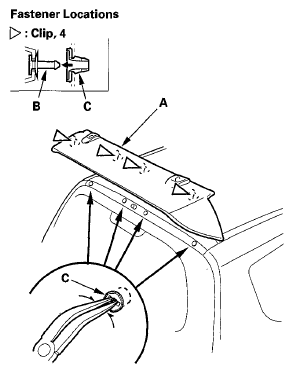

    Fig 2: Identifying Tailgate Spoiler, Pins, Grommets & Spoiler
    G05959716Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the grommets from the tailgate with snap ring pliers.
  5. If the grommets or the pins are damaged or stress-whitened, replace them. Always replace both the pin and the grommet if either is damaged.
  6. Install the grommets on the pins by pushing them into place.
  7. Install the spoiler in the reverse order of removal, and push the clips into place securely.
