Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

KTC trim tool set SOJATP2014 *

* Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the body.
Take care not to bend the roof molding.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

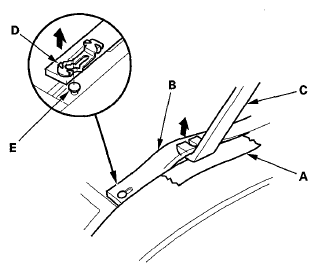

Apply protective tape (A) to the body. Pry up on the roof molding (B) with the appropriate trim tool (C).

Fig 1: Prying Up On Roof Molding With Trim Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull up and slide the roof molding to release the front bracket (D) from the pin (E).

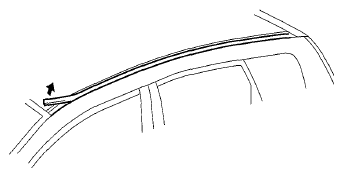

Pull up the front portion of the roof molding.

Fig 2: Pulling Up Front Portion Of Roof Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.

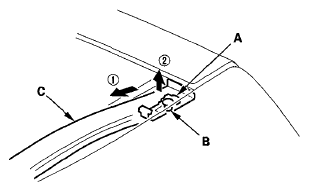

Pull up and release the rear bracket (A) from the pin (B), then remove the roof molding (C).

Fig 3: Identifying Rear Bracket From Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the molding in the reverse order of removal, and note these items:
- Take care not to damage the windshield molding.
- Make sure the roof molding is installed securely.
Fig 4: Identifying Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.
