Emblem/Sticker Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing the emblems/stickers, take care not to scratch the body.
  1. To remove the front "H" emblem, remove the front grille (see FRONT GRILLE COVER REPLACEMENT  ).
  2. To remove the rear "H" emblem, remove the rear license trim (see REAR LICENSE TRIM REPLACEMENT  ).
  3. Clean the body surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
  4. Apply the emblems/sticker where shown. When installing the ULEV sticker on the inside surface of the left quarter glass, align the sticker with the edge of the glass mark as shown, then press the sticker into place, and remove the application tape.
  5. After installing the front "H" emblem, reinstall the front grille (see FRONT GRILLE COVER REPLACEMENT  ).
  6. After installing the rear "H" emblem, reinstall the rear license trim (see REAR LICENSE TRIM REPLACEMENT  ).

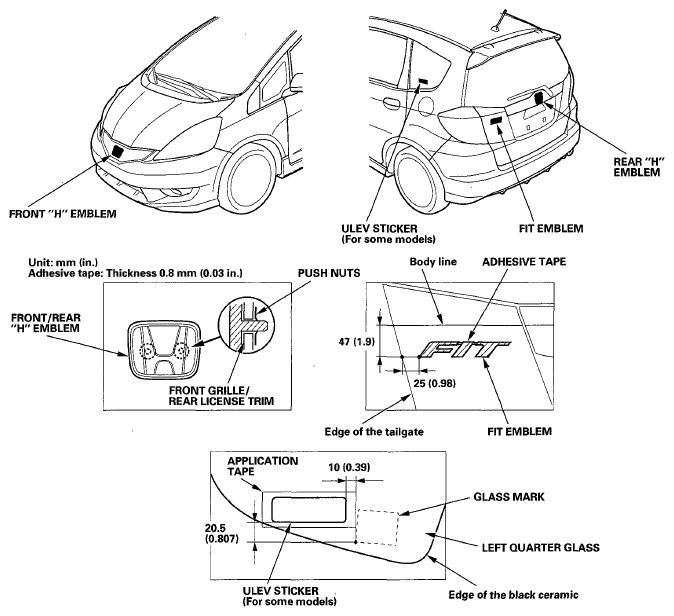

    Fig 1: Identifying Emblem/Sticker Location
    G05959720Courtesy of AMERICAN HONDA MOTOR CO., INC.
