EVAP Canister Vent Shut Valve Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the EVAP canister assembly (see EVAP CANISTER REPLACEMENT  ).
  2. Remove the hose (A), and disconnect the EVAP canister vent shut valve connector (B).

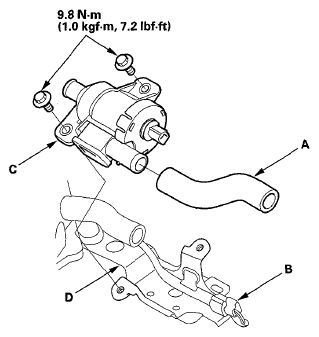

    Fig 1: Hose, EVAP Canister Vent Shut Valve, Connector & Canister Bracket With Torque Specifications
    G05953278Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EVAP canister vent shut valve (C) from the canister bracket (D).
  4. Install the parts in the reverse order of removal.
