EVAP Canister Purge Valve Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the EVAP canister purge valve connector (A).

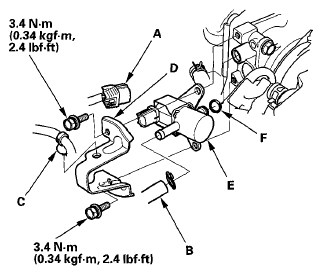

    Fig 1: EVAP Canister Purge Valve Connector, Hose, Harness Clamp & EVAP Canister Purge Guard With Torque Specifications
    G05953280Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the hose (B), and the harness clamp (C), the then remove the EVAP canister purge guard (D), and the canister purge valve (E).
  3. Install the parts in the reverse order of removal with a new O-ring (F).
