Output Shaft (Countershaft) Speed Sensor

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects countershaft speed.

M/T

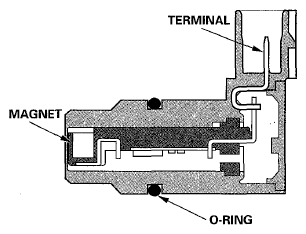

Fig 1: Identifying Sectional View Of Output Shaft (Countershaft) Speed Sensor (M/T)
G05952815Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/T

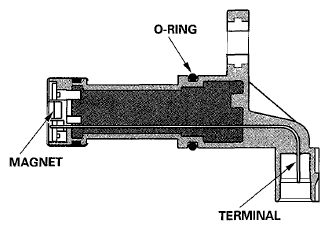

Fig 2: Identifying Sectional View Of Output Shaft (Countershaft) Speed Sensor (A/T)
G05952816Courtesy of AMERICAN HONDA MOTOR CO., INC.
