Manifold Absolute Pressure (MAP) Sensor

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The MAP sensor converts manifold absolute pressures into electrical signals to the ECM/PCM.

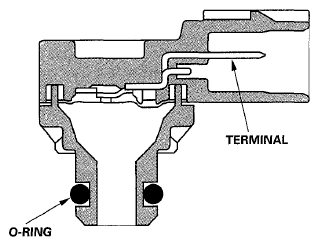

Fig 1: Identifying Sectional View Of Manifold Absolute Pressure (MAP) Sensor
G05952813Courtesy of AMERICAN HONDA MOTOR CO., INC.
