Crankshaft Position (CKP) Sensor

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The CKP sensor detects crankshaft speed and is used by the ECM/PCM to determine ignition timing, timing for the fuel injection of each cylinder, and engine misfire detection.

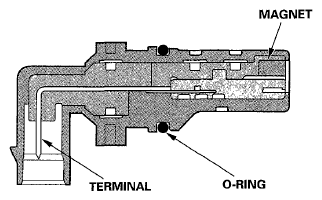

Fig 1: Identifying Sectional View Of Crankshaft Position (CKP) Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
