EVAP Canister Purge Valve

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

When the engine coolant temperature is below 140°F (60°C), the ECM/PCM turns off the EVAP canister purge valve, cutting vacuum to the EVAP canister.

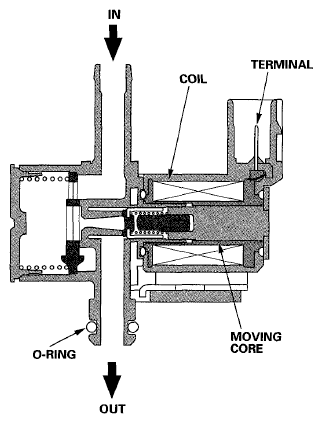

Fig 1: Identifying Sectional View Of EVAP Canister Purge Valve
G05952828Courtesy of AMERICAN HONDA MOTOR CO., INC.
