Throttle Body

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The throttle body is a single-barrel side draft type. The lower portion of the throttle valve is heated by engine coolant from the cylinder head to prevent icing of the throttle plate.

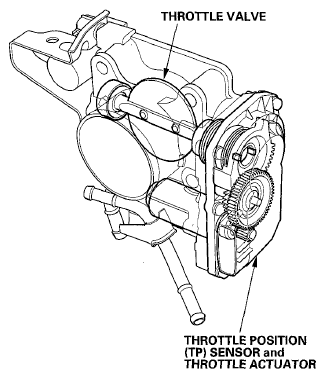

Fig 1: Identifying Throttle Body, Throttle Position (TP) Sensor & Throttle Actuator
G05952819Courtesy of AMERICAN HONDA MOTOR CO., INC.
