ECM/PCM Circuit Diagram

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

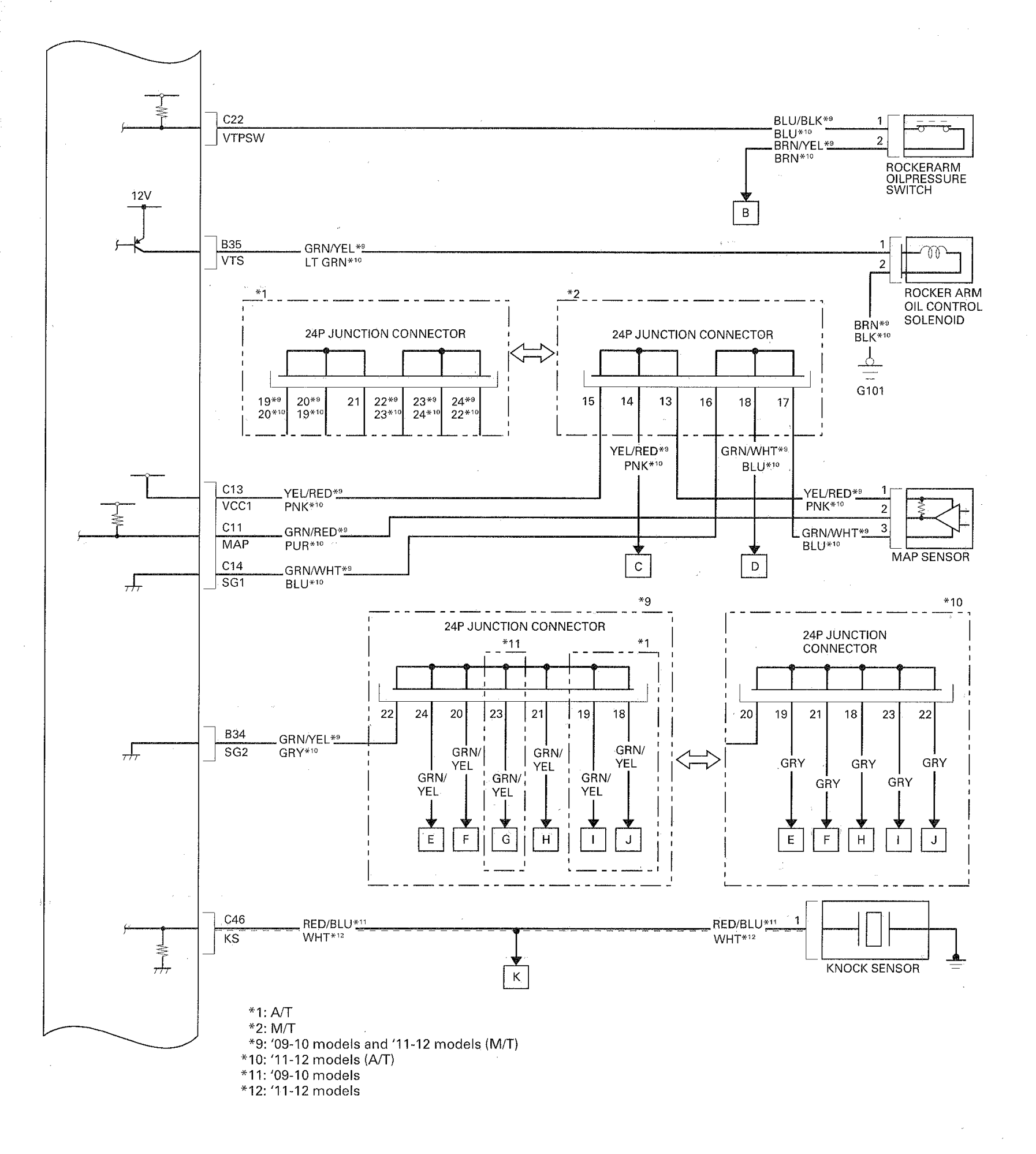

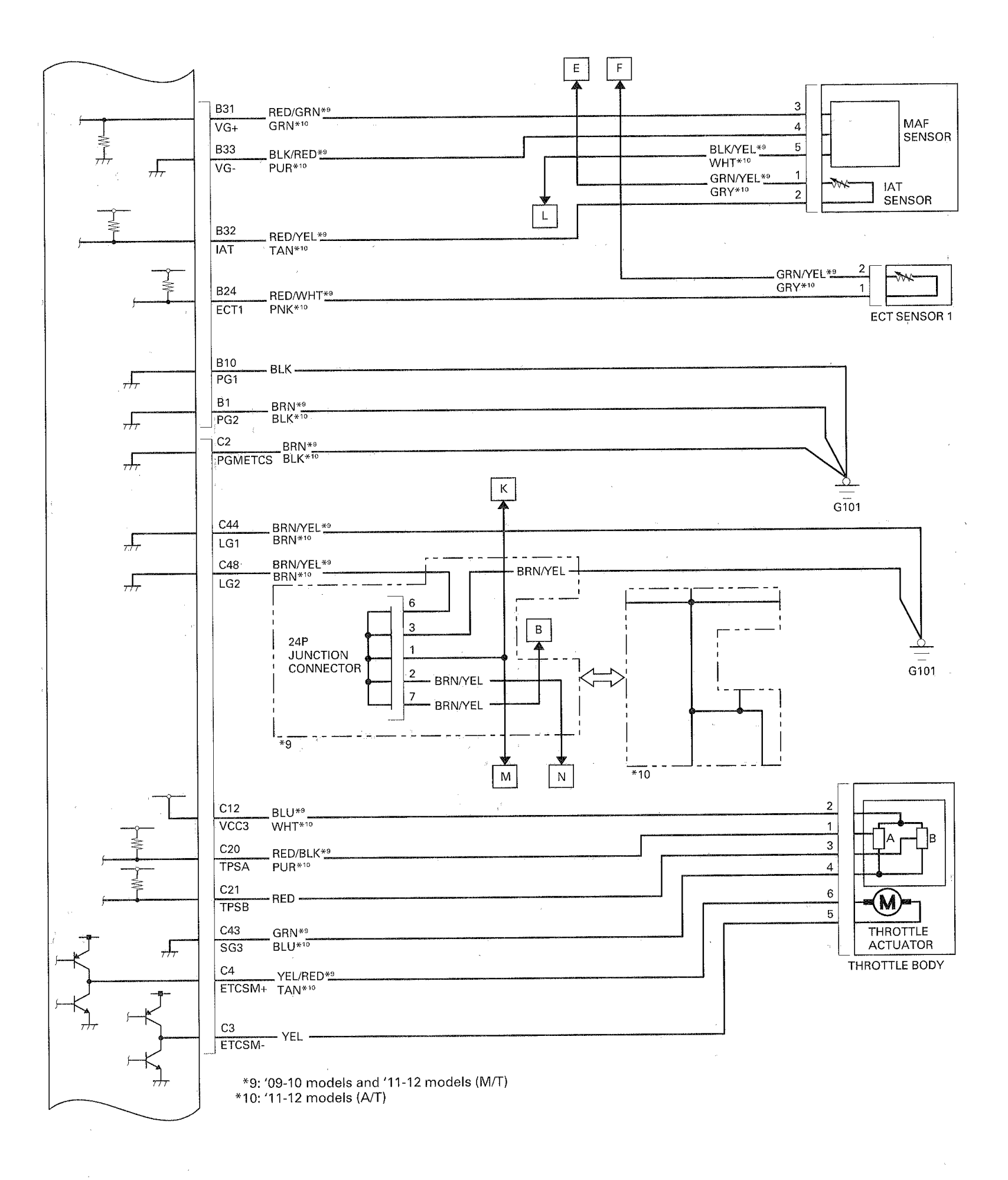

Fig 1: Identifying ECM/PCM Circuit Diagram (1 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

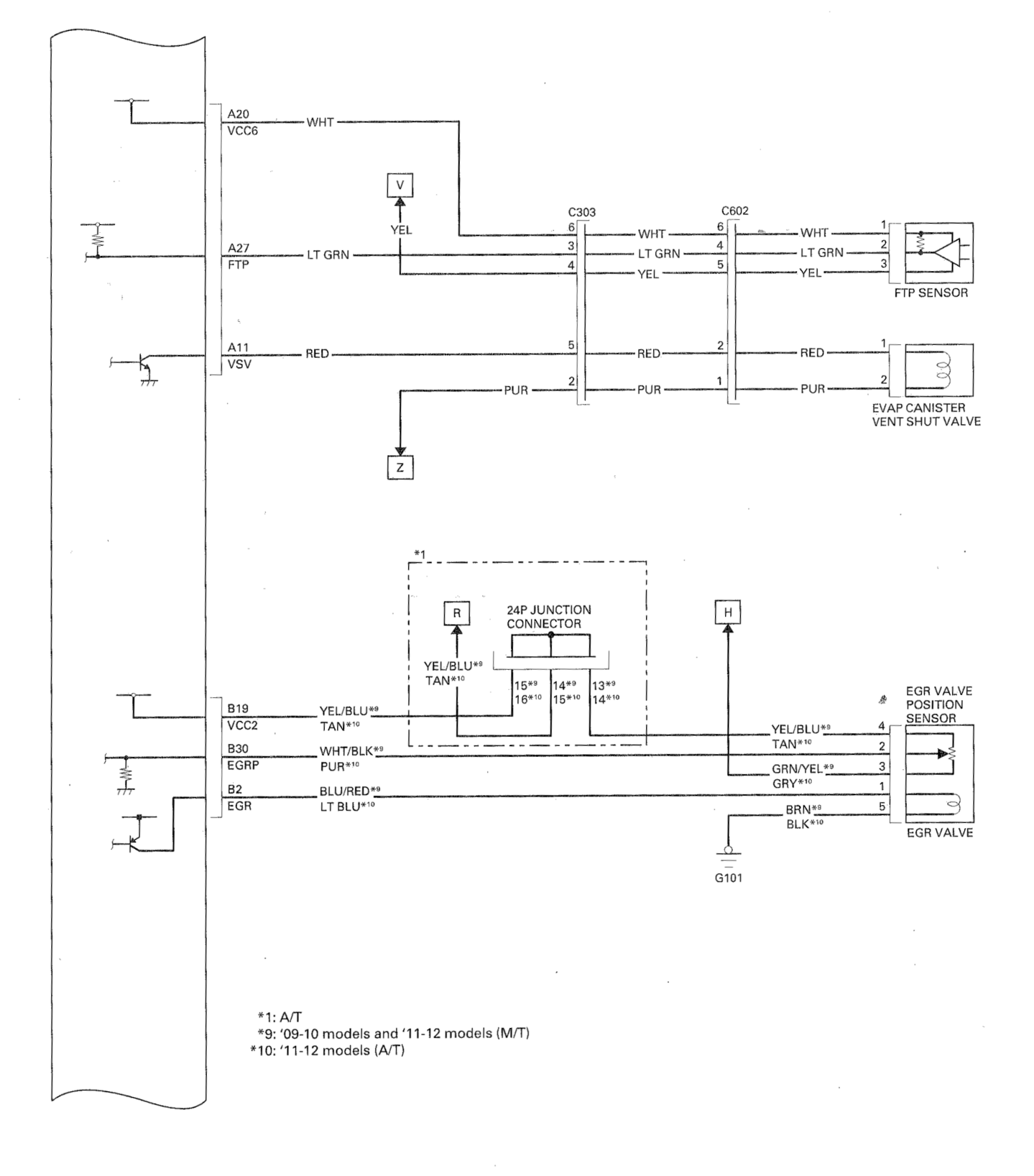

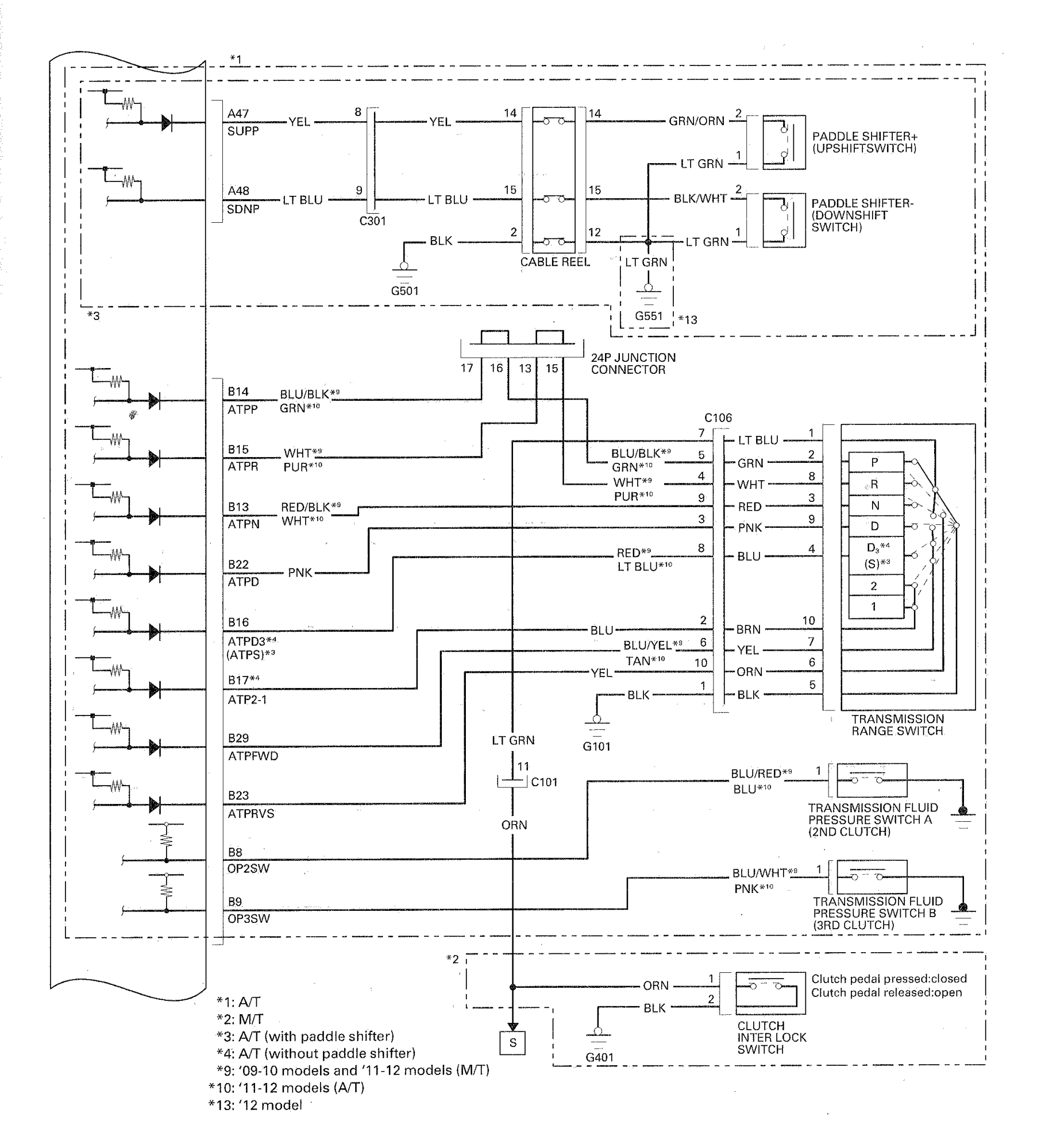

Fig 2: Identifying ECM/PCM Circuit Diagram (2 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

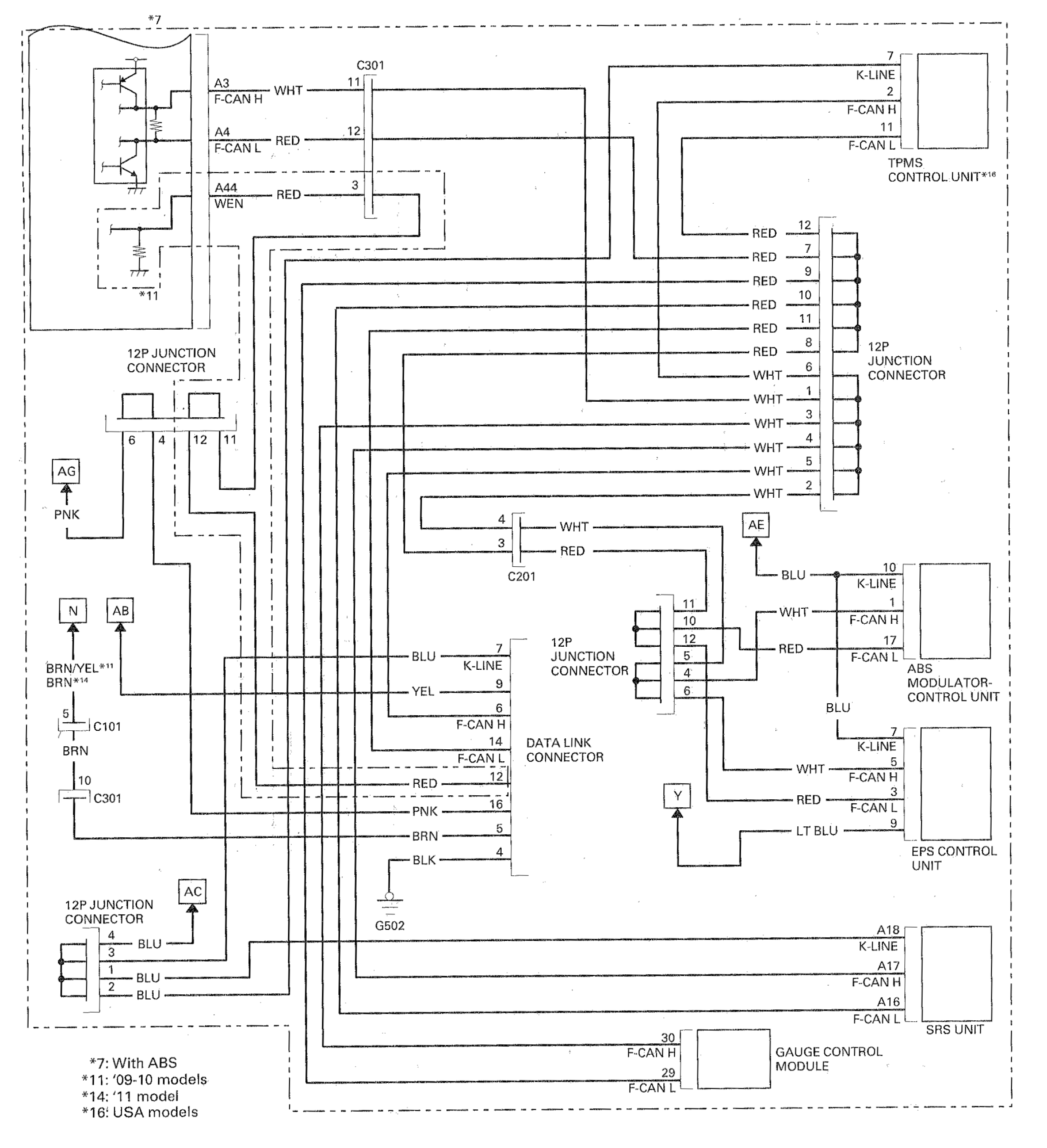

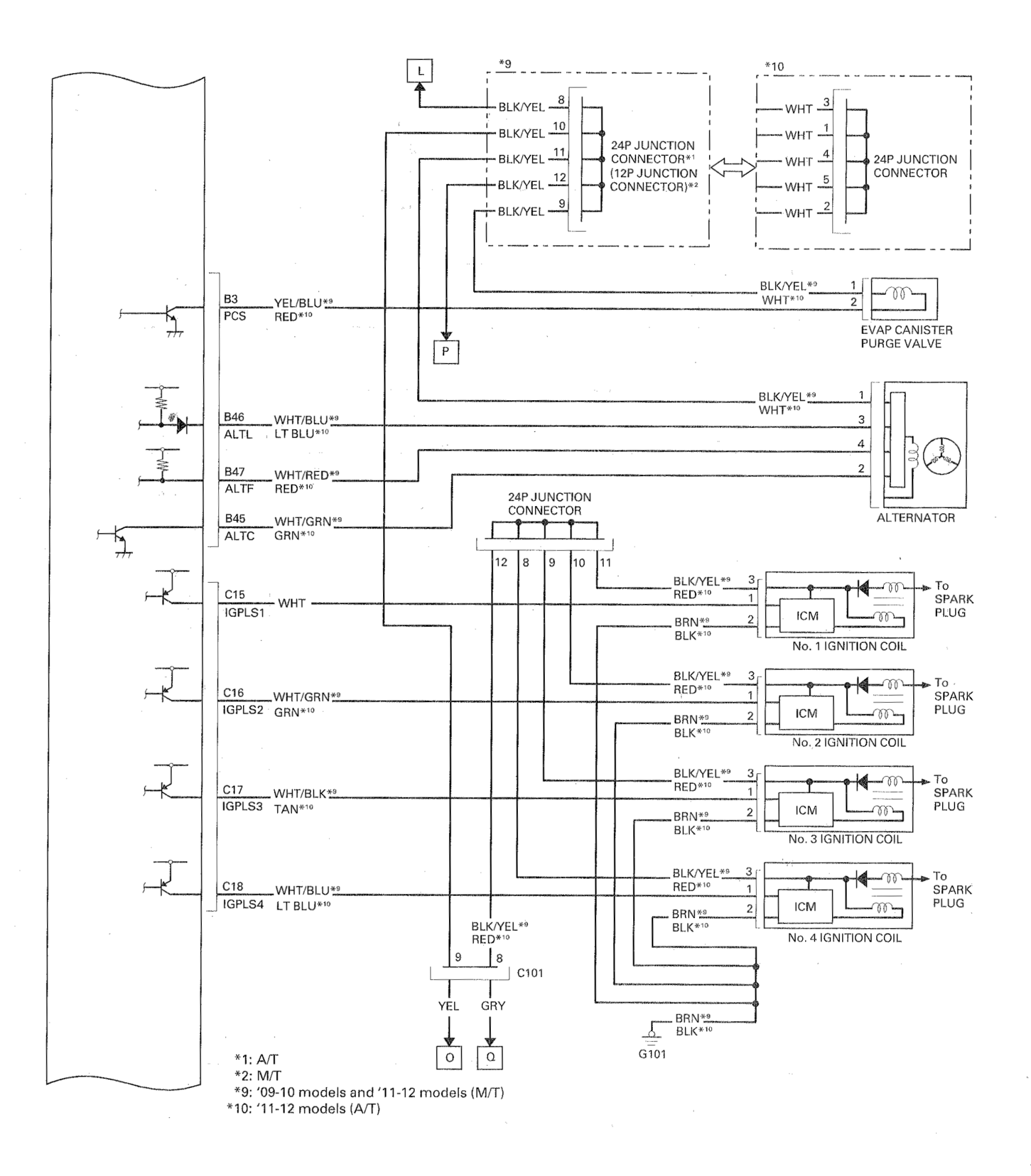

Fig 3: Identifying ECM/PCM Circuit Diagram (3 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

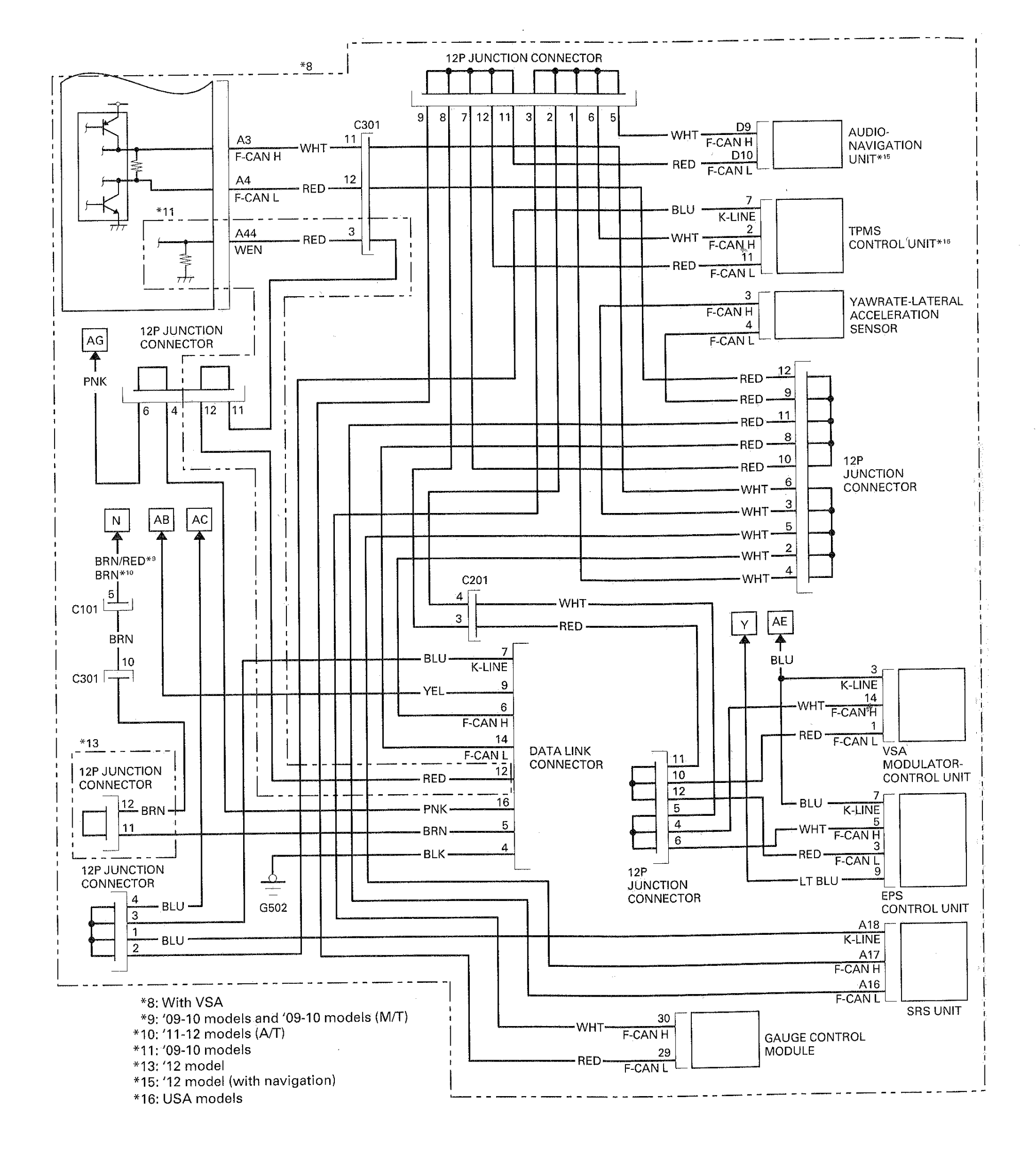

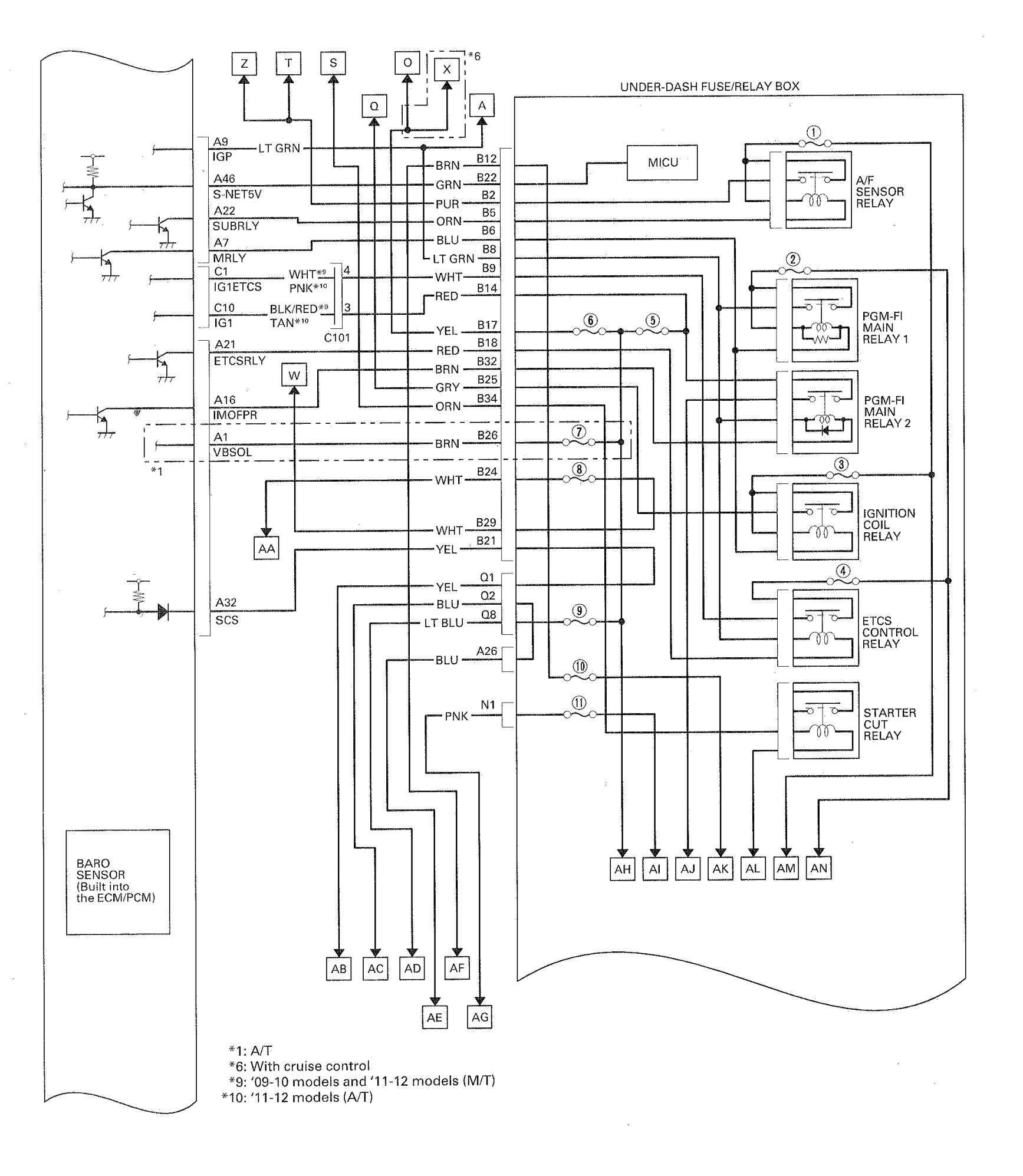

Fig 4: Identifying ECM/PCM Circuit Diagram (4 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

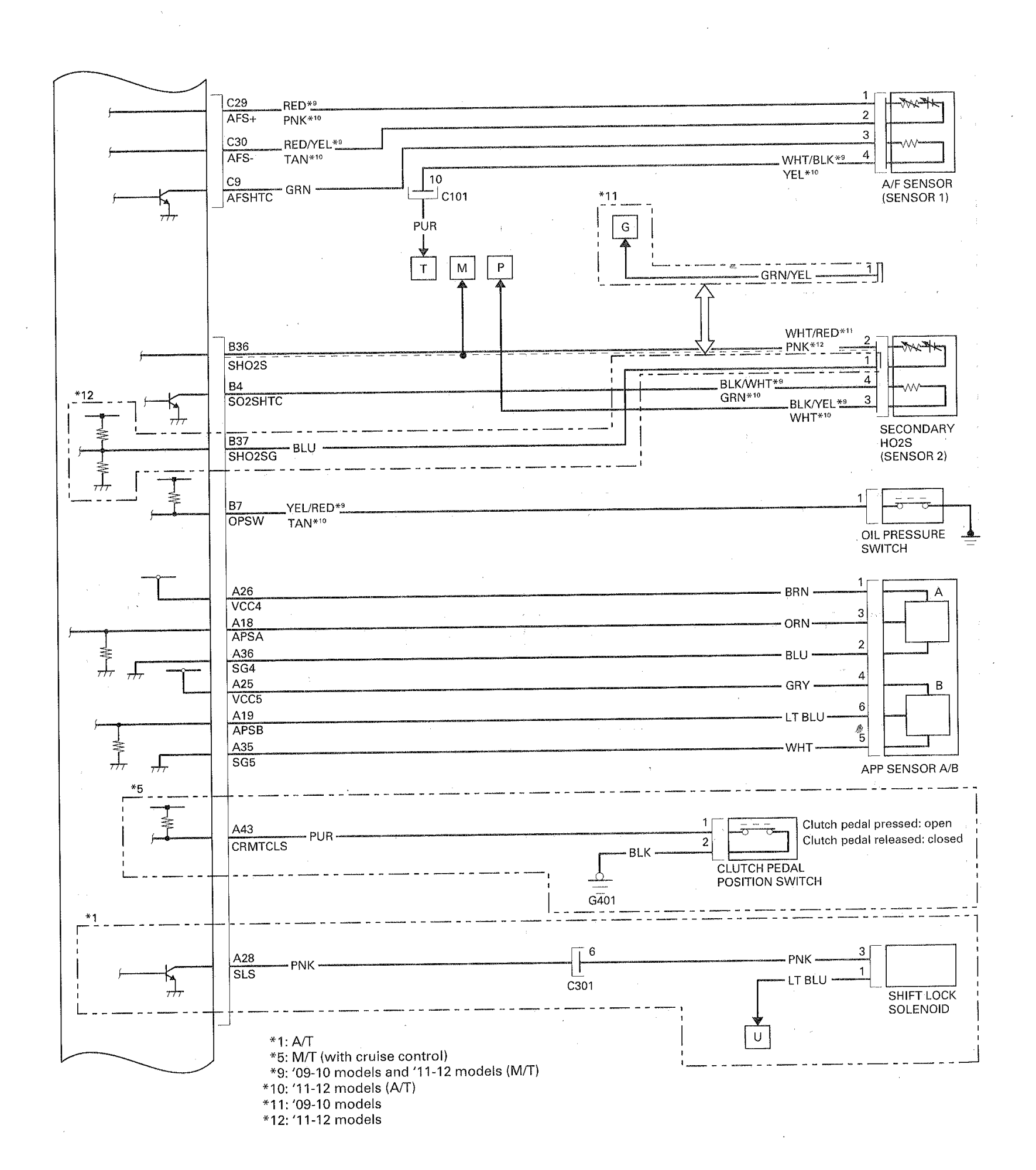

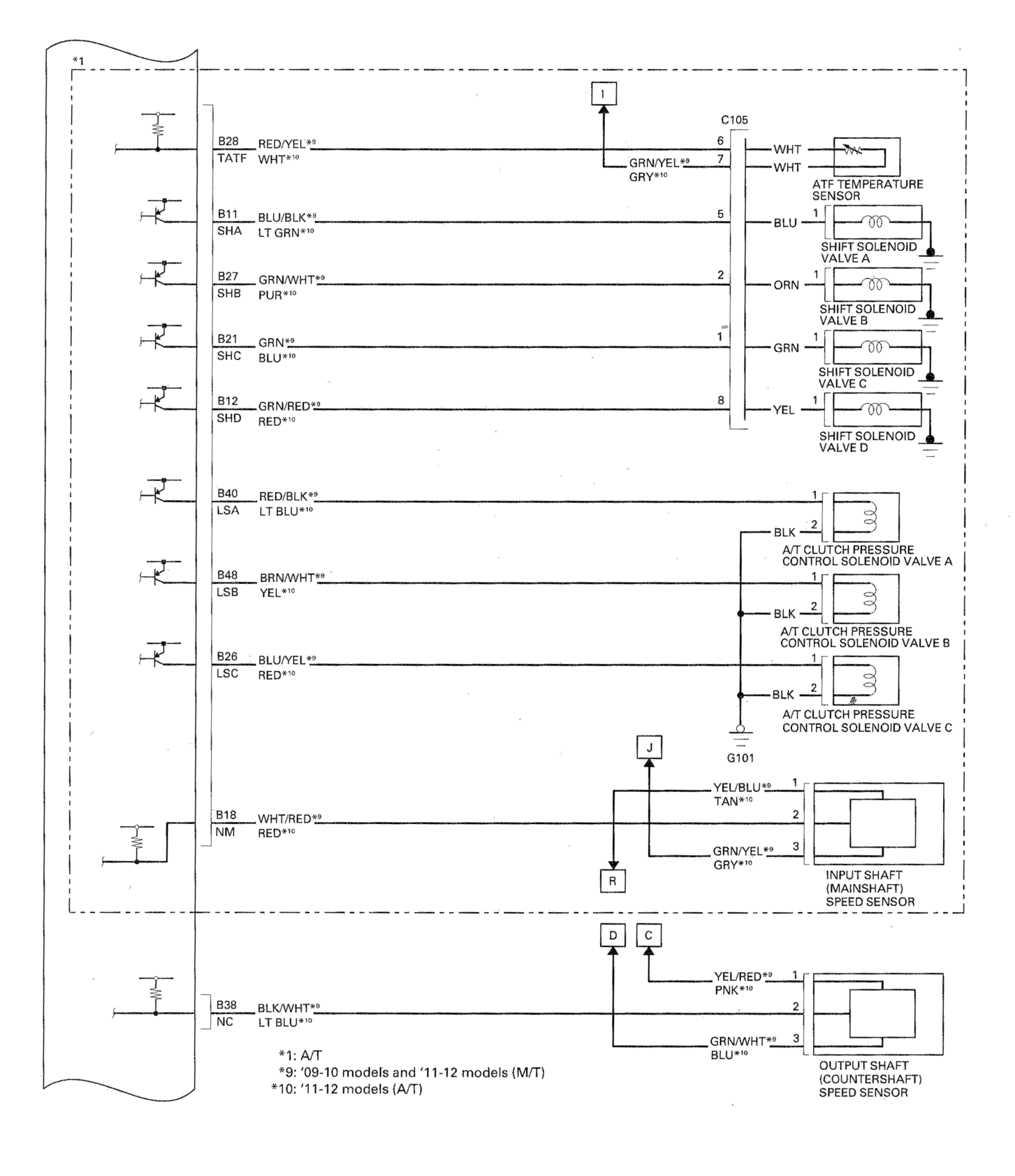

Fig 5: Identifying ECM/PCM Circuit Diagram (5 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

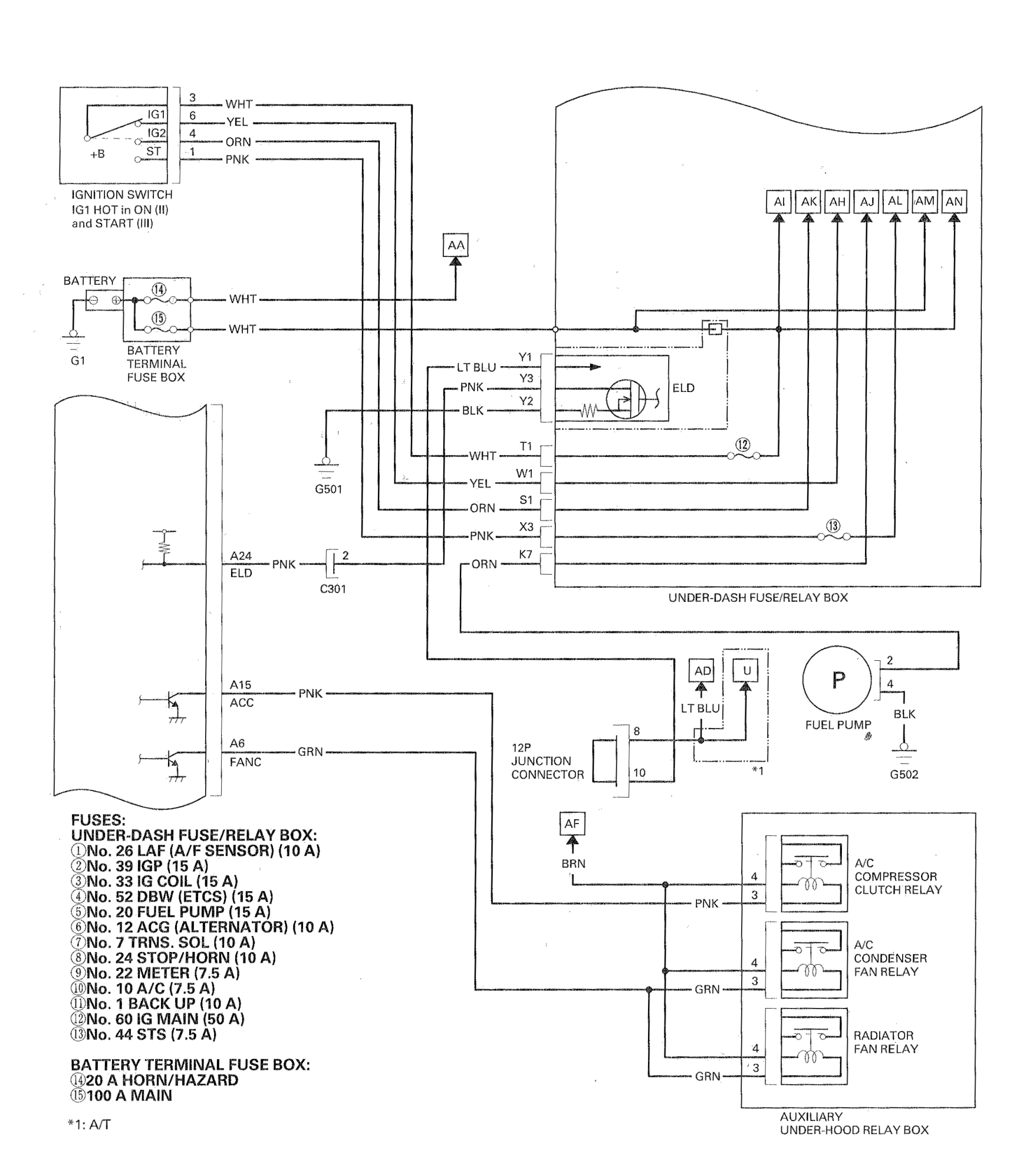

Fig 6: Identifying ECM/PCM Circuit Diagram (6 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

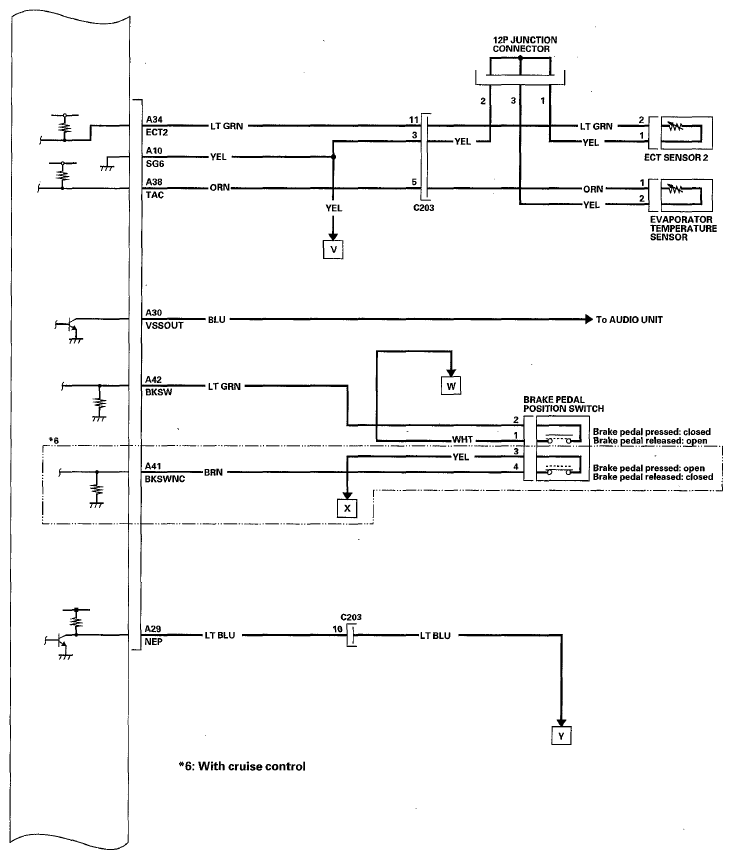

Fig 7: Identifying ECM/PCM Circuit Diagram (7 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

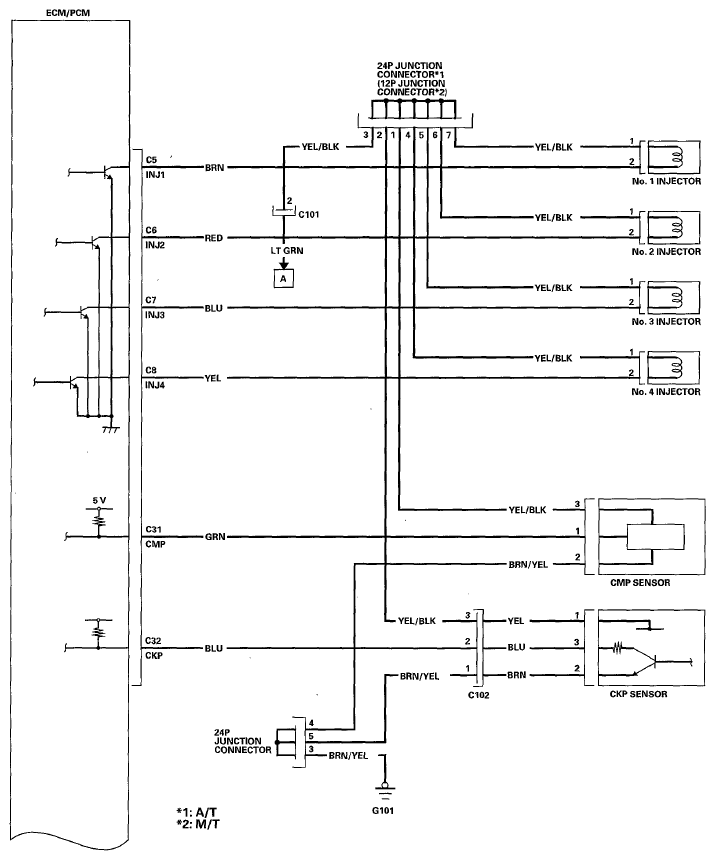

Fig 8: Identifying ECM/PCM Circuit Diagram (8 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Identifying ECM/PCM Circuit Diagram (9 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Identifying ECM/PCM Circuit Diagram (10 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Identifying ECM/PCM Circuit Diagram (11 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Identifying ECM/PCM Circuit Diagram (12 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Identifying ECM/PCM Circuit Diagram (13 Of 13)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
