Positive Crankcase Ventilation (PCV) System

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The PCV valve prevents blow-by gasses from escaping into the atmosphere by venting them into the intake manifold.

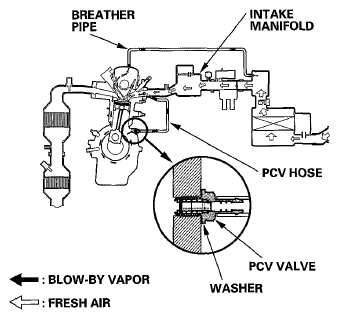

Fig 1: Identifying Positive Crankcase Ventilation System Diagram
G05952827Courtesy of AMERICAN HONDA MOTOR CO., INC.
