Clear/Learn Procedure (with the HDS)

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

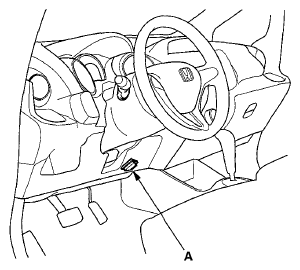

    Fig 1: Identifying Data Link Connector
    G05952777Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II).
  3. Make sure the HDS communicates with the ECM/PCM and other vehicle systems. If it doesn't, go to DLC CIRCUIT TROUBLESHOOTING .
  4. Select CRANK PATTERN in the ADJUSTMENT MENU with the HDS.
  5. Select CRANK PATTERN LEARNING with the HDS, and follow the screen prompts.
