EGR Pipe Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the EGR pipe on the cylinder head side with a new gasket (A), and hand-tighten the nuts (B).

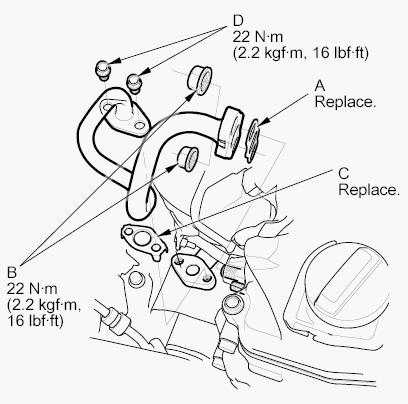

    Fig 1: Gasket, Hand-Tighten Nuts & Bolts With Torque Specifications
    G05953229Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the EGR pipe on the WU-TWC side with a new gasket (C), and tighten the bolts (D).
  3. Tighten the nuts on the cylinder head side.
  4. Install the cowl cover (see COWL COVER REPLACEMENT ) and the under-cowl panel (see UNDER-COWL PANEL REPLACEMENT ).
