Oil Separator

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Oil emission from the A/C compressor to the A/C line is reduced by placing the oil separator in the A/C compressor. This results in a thinner oil film inside of the heat exchangers {A/C condenser and evaporator). Air conditioning efficiency is increased without sacrificing engine performance.

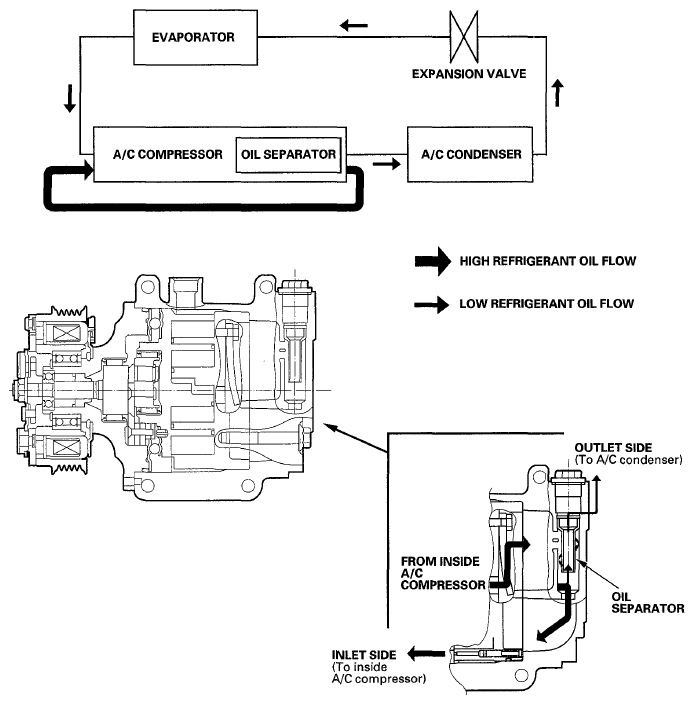

Fig 1: Identifying Oil Separator Function Diagram
G05959797Courtesy of AMERICAN HONDA MOTOR CO., INC.
