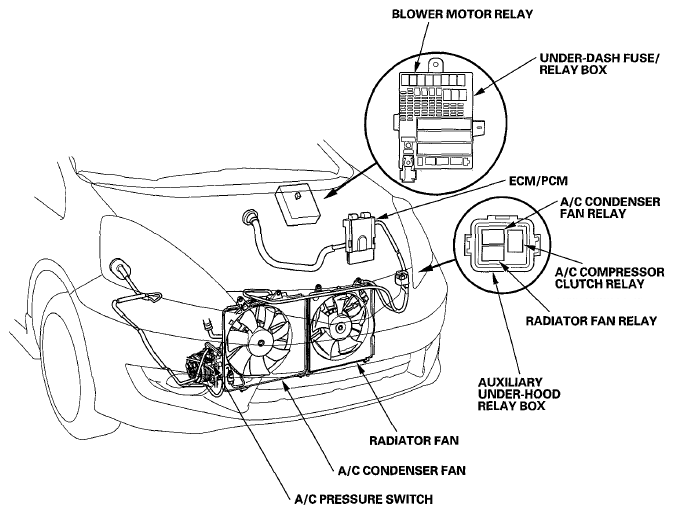

Fig 1: Identifying Air Conditioning Replacement Components (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

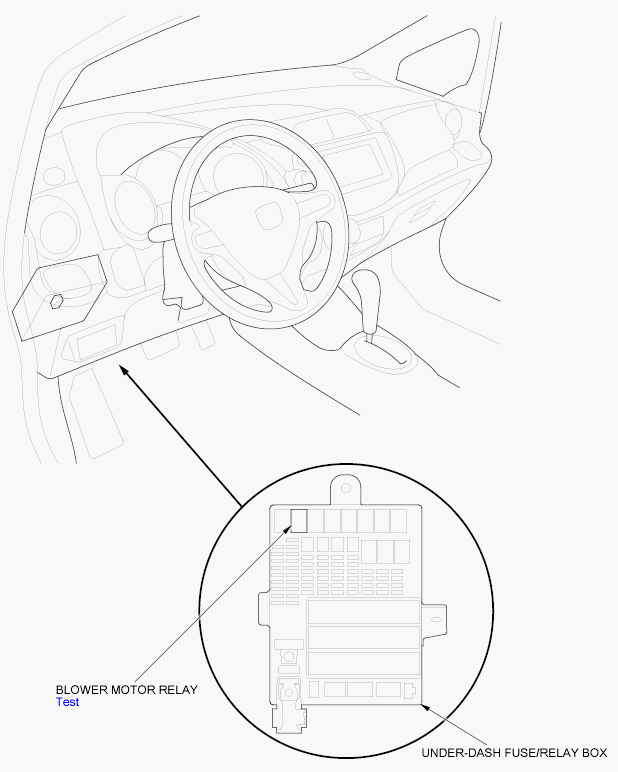

Fig 2: Identifying Air Conditioning Replacement Components (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

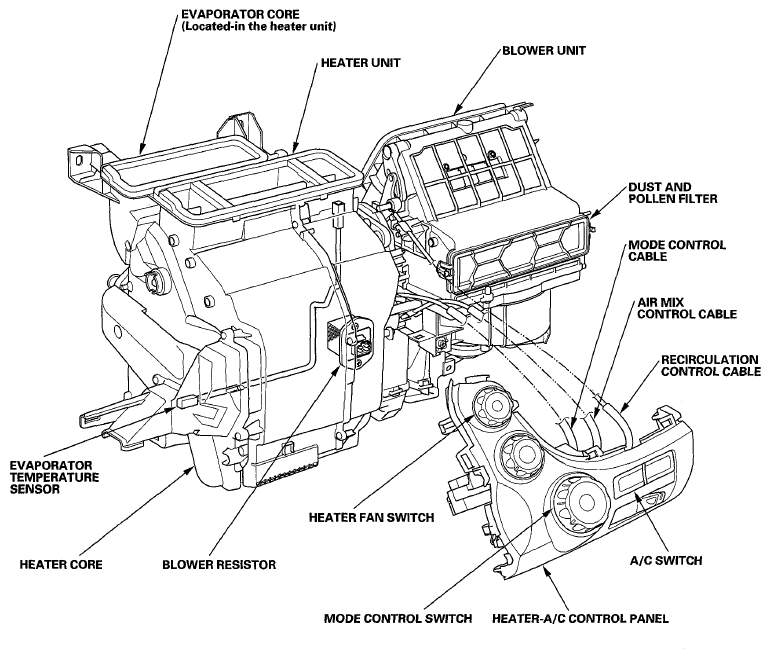

Fig 3: Identifying Air Conditioning Replacement Components (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

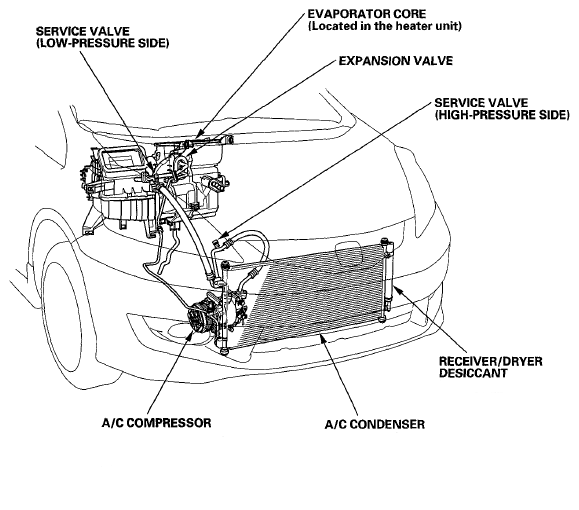

Fig 4: Identifying Air Conditioning Replacement Components (4 Of 4)
