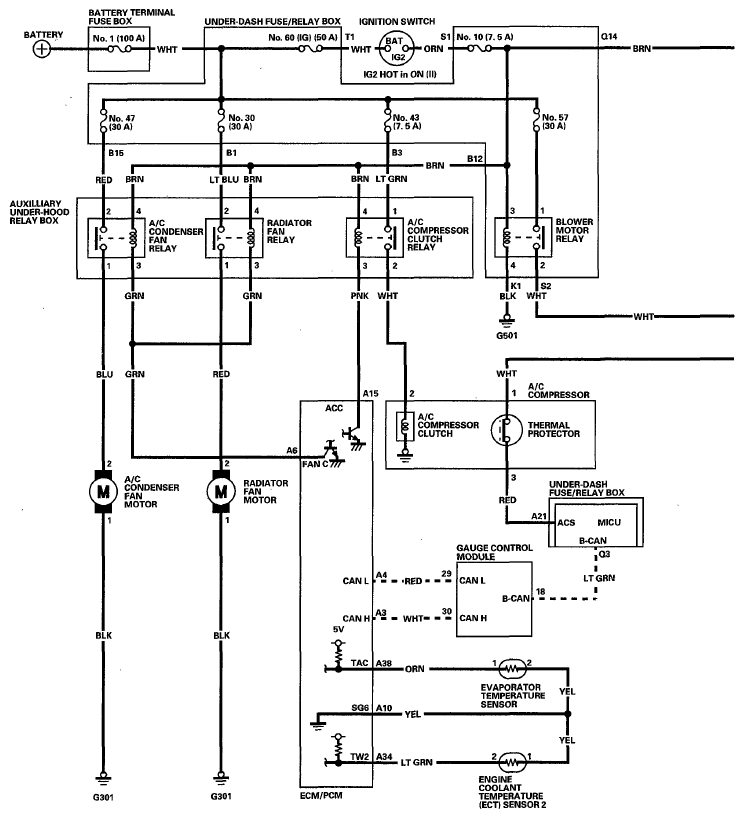

Fig 1: Identifying Heating/Air Conditioning Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

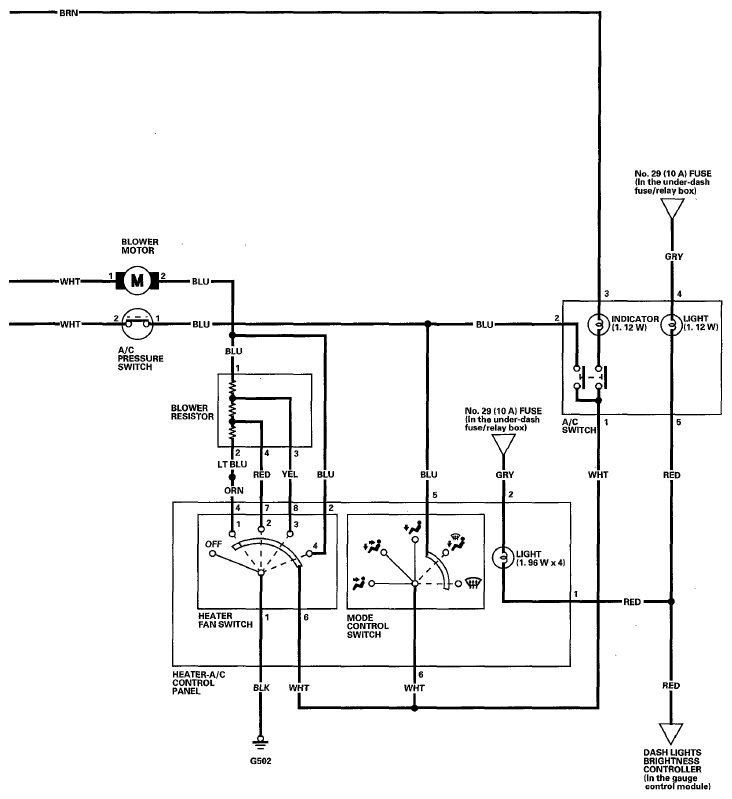

Fig 2: Identifying Heating/Air Conditioning Circuit Diagram (2 Of 2)
