2009-10 Model

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY  ).
  2. Remove the relief valve cover (A), the relief valve (B), and the O-ring (C). Plug the opening to keep foreign matter from entering the system and the A/C compressor oil from running out.

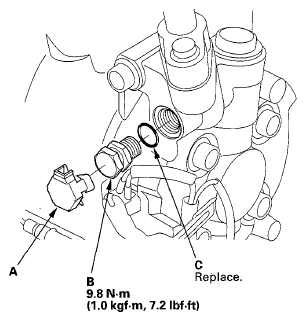

    Fig 1: Relief Valve Cover, Relief Valve & O-Ring With Torque Specifications
    G05959852Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Clean the mating surfaces.
  4. Replace the O-ring with a new one at the relief valve, and apply a thin coat of refrigerant oil before installing it.
  5. Remove the plug you installed in step  2, then install and tighten the relief valve.
  6. Charge the system (see SYSTEM CHARGING  ).
