Out-of-Round and Taper

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL  ).
  2. Clean the crankshaft oil passages with pipe cleaners or a suitable brush.
  3. Clean the keyway and threads.
  4. Measure the out-of-round at the middle of each rod and the main journal in two places. The difference between measurements on each journal must not be more than the service limit.

    Journal Out-of-Round

    Standard (New): 0.005 mm (0.0002 in.) max.

    Service Limit: 0.010 mm (0.0004 in.)

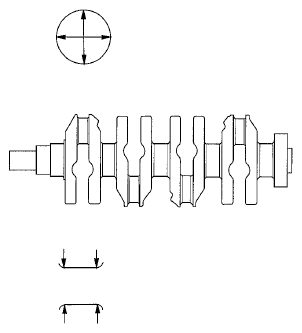

    Fig 1: Measuring Out-Of-Round & Taper
    G05952601Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Measure the taper at the edges of each rod and the main journal. The difference between measurements on each journal must not be more than the service limit.

    Journal Taper

    Standard (New): 0.005 mm (0.0002 in.) max.

    Service Limit: 0.010 mm (0.0004 in.)
