Warm Up TWC Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift.
  2. Remove the bolts (A).

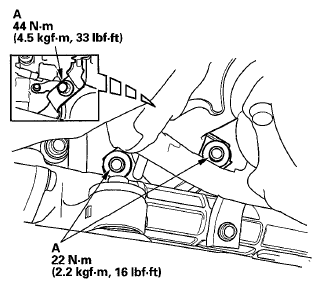

    Fig 1: Identifying Bolts
    G05953206Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Lower the vehicle.
  4. Remove the A/F sensor (Sensor 1) (see A/F SENSOR REPLACEMENT ).
  5. Remove the EGR pipe (see EGR VALVE REPLACEMENT ).
  6. Remove the cover (A).

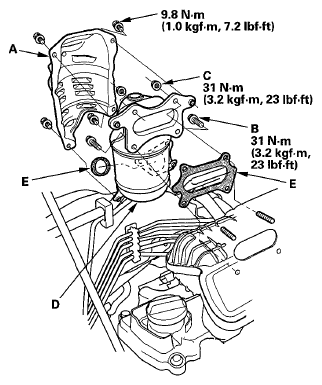

    Fig 2: Cover, Bolts, Nuts, Gasket & WU-TWC With Torque Specifications
    G05953207Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the bolts (B) and the nuts (C).
  8. Remove the WU-TWC (D).
  9. Install the parts in the reverse order of removal with a new gaskets (E).
