Stabilizer Bar Replacement: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front subframe (see STEERING GEARBOX REMOVAL AND INSTALLATION ).
  2. Remove the steering gearbox from the front subframe (see step 33 on REMOVAL ).
  3. Remove the flange bolts (A) and the bushing holders (B), then remove the bushings (C).

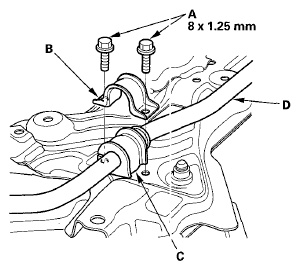

    Fig 1: Identifying Flange Bolts, Bushing Holders, Bushings & Stabilizer Bar
    G05959082Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the stabilizer bar (D) from the front subframe.
