Stabilizer Bar Replacement: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Install the bushings (A) on the stabilizer bar.
NOTE:
- Note the direction of installation for the bushings.
- Align the stabilizer band clamp (B) with the side of the bushings.

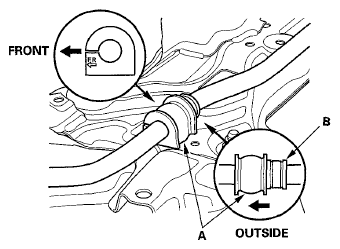

  Fig 1: Identifying Bushings & Stabilizer Band Clamp
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the stabilizer bar (A) with the bushings on the front subframe.
NOTE:
- Note the right and left direction of the stabilizer bar.
- Note the direction of installation for the bushing holders (B).

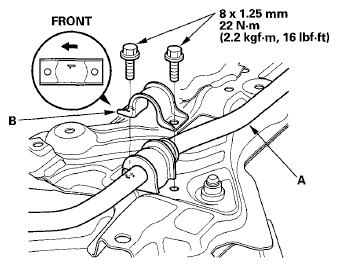

  Fig 2: Identifying Stabilizer Bar & Bushing Holder With Bolts
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering gearbox on the front subframe (see INSTALLATION ).
Install the front subframe (see INSTALLATION ).
