SRS Unit Inputs and Outputs at Connector A (39P)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

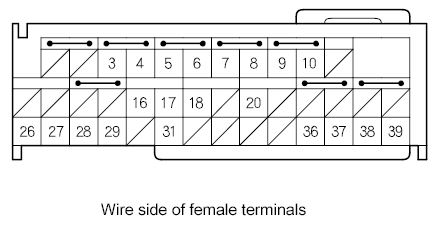

CONNECTOR TERMINAL REFERENCE
| Terminal Number | Wire Color | Terminal Name | Description | ||
|---|---|---|---|---|---|
| 3 | ORN(1) | LA1- | Ground for the driver's airbag first inflator | ||
| 4 | YEL(1) | LA1+ | Power source for the driver's airbag first inflator | ||
| 5 | BRN(1) | RA1- | Ground for the passenger's airbag first inflator | ||
| 6 | LT BLU(1) | RA1+ | Power source for the passenger's airbag first inflator | ||
| 7 | LT BLU(1) | LA2- | Ground for the driver's airbag second inflator | ||
| 8 | LT GRN(1) | LA2+ | Power source for the driver's airbag second inflator | ||
| 9 | PUR(1) | RA2- | Ground for the passenger's airbag second inflator | ||
| 10 | GRN(1) | RA2+ | Power source for the passenger's airbag second inflator | ||
| 16 | RED(1) | CAN LO | Sends and receives communication signal from the gauge control module | ||
| 17 | WHT(1) | CAN HI | Sends and receives communication signal from the gauge control module | ||
| 18 | BLU(1) | K-LINE | Sends and receives scan tool signal (serial data) | ||
| 20 | GRN(1) | PTT | Sends and receives communication signal with the passenger's airbag off indicator | ||
| 26 | WHT(1) | VA | SRS unit sub power (common with ODS) | ||
| 27 | PUR(1) | VB | SRS dedicated power (dedicated booster circuit) | ||
| 28 | BLK(1) | SRS GND 1 | Ground circuit for the SRS unit (G504) | ||
| 29 | BLK(1) | SRS GND 2 | Ground circuit for the SRS unit (G504) | ||
| 31 | RED(1) | WEN | Data link connector | ||
| 36 | BRN(1) | LFS- | Ground for the left front impact sensor | ||
| 37 | RED(1) | LFS+ | Power source for the left front impact sensor | ||
| 38 | LT BLU(1) | RFS- | Ground for the right front impact sensor | ||
| 39 | GRN(1) | RFS+ | Power source for the right front impact sensor | ||
|
|||||
