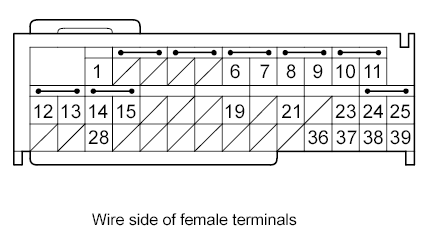

SRS Unit Inputs and Outputs At Connector B (39P)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of AMERICAN HONDA MOTOR CO., INC. CONNECTOR TERMINAL REFERENCE TABLE
| Terminal Number |
Wire Color |
Terminal Name |
Description |
| 1 |
GRY |
ODS |
Sends and receives communication signal with the ODS unit |
| 6 |
ORN |
LSA- |
Ground for the driver's side airbag inflator |
| 7 |
PUR |
LSA+ |
Power source for the driver's side airbag inflator |
| 8 |
LT GRN |
RSA- |
Ground for the front passenger's side airbag inflator |
| 9 |
PNK |
RSA+ |
Power source for the front passenger's side airbag inflator |
| 10 |
RED |
LCA1- |
Ground for the left side curtain airbag inflator |
| 11 |
WHT |
LCA1+ |
Power source for the left side curtain airbag inflator |
| 12 |
BRN |
LRP- |
Ground for the driver's seat belt tensioner |
| 13 |
PNK |
LRP+ |
Power source for the driver's seat belt tensioner |
| 14 |
LT GRN |
RRP- |
Ground for the front passenger's seat belt tensioner |
| 15 |
LT BLU |
RRP+ |
Power source for the front passenger's seat belt tensioner |
| 19 |
YEL |
FLBC |
Driver's seat belt buckle switch |
| 21 |
GRN |
FRBC |
Front passenger's seat belt buckle switch |
| 23 |
LT BLU |
SS+ |
Power source for the driver's seat position sensor |
| 24 |
BLU |
RCA1- |
Ground for the right side curtain airbag inflator |
| 25 |
YEL |
RCA1+ |
Power source for the right side curtain airbag inflator |
| 28 |
WHT |
SS+ |
Power source for the driver's seat position sensor |
| 36 |
GRY |
LBS1- |
Ground for the left side impact sensor (first) |
| 37 |
PNK |
LBS1+ |
Power source for the left side impact sensor (first) |
| 38 |
LT GRN |
RBS1- |
Ground for the right side impact sensor (first) |
| 39 |
BRN |
RBS1+ |
Power source for the right side impact sensor (first) |
