Side Curtain Airbag(s)

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Side impact sensor must activate and send electrical signals to the SRS unit.
  2. The SRS unit must compute the signals trigger the side curtain airbag and side airbag inflator(s).
  3. The triggered inflators that receives the signals must ignite and deploy the side curtain airbag and side airbag at the same time.

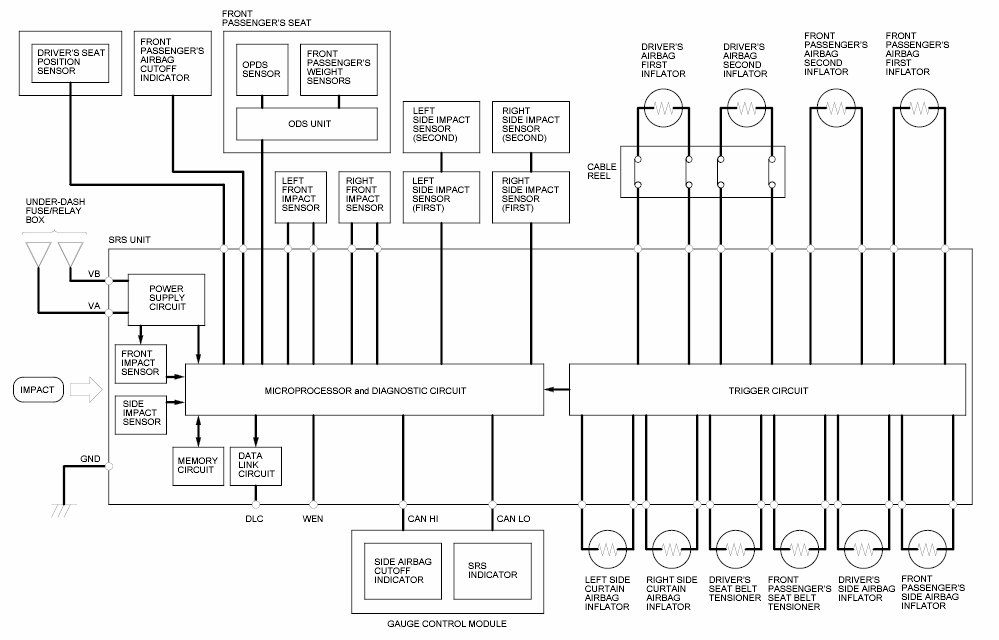

Fig 1: Identifying SRS Unit - Circuit Diagram
G05960436Courtesy of AMERICAN HONDA MOTOR CO., INC.
