Driver's Seat Position Sensor

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The driver's seat position sensor (N) is under the driver's seat on the left side. When the driver's seat is moved to forward most position, the deployment of the driver's airbag is moderated to decrease its force of impact during a front-end collision.

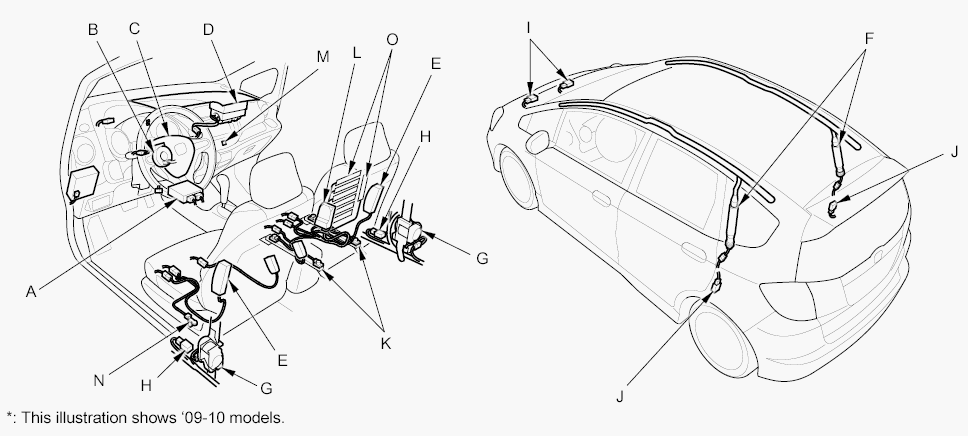

Fig 1: Identifying SRS Components Location
G05960435Courtesy of AMERICAN HONDA MOTOR CO., INC.
