Side Impact Sensor (First) Replacement: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove the front seat assembly (see FRONT SEAT REMOVAL/INSTALLATION ).
  3. Remove the B-pillar lower trim panel (see B-PILLAR UPPER/LOWER TRIM ).
  4. Disconnect the floor wire harness 4P connector (A) from the side impact sensor (first).

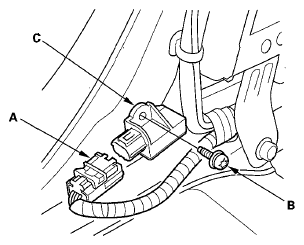

    Fig 1: Identifying Floor Wire Harness 4P Connector
    G05960623Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the TORX bolt (B) using a TORX T30 bit, then remove the side impact sensor (first) (C).
