Side Impact Sensor (First) Replacement: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

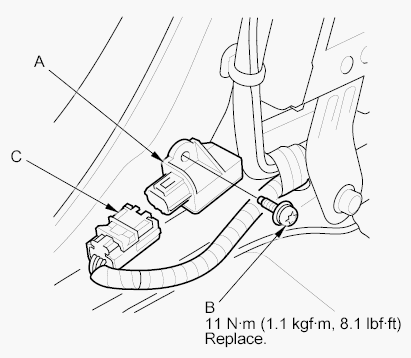

  1. Install the side impact sensor (first) (A) with a new TORX bolt (B), using a TORX T30 bit. Connect the side impact sensor (first) 4P connector (C) on the floor wire harness.
    Fig 1: Floor Wire Harness 2P Connector With Torque Specifications
    G05960624Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  3. Clear any DTCs with the HDS (see CLEAR THE DTC MEMORY ).
  4. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
  5. Reinstall all removed parts.
