SRS Unit Replacement: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the heater joint duct (see step 5 on DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION ).
  4. Disconnect SRS unit connectors A (39P) and B (39P) from the SRS unit.

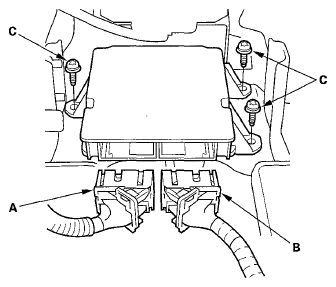

    Fig 1: Identifying SRS Unit Connectors A (39P) & B (39P)
    G05960621Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the TORX bolts (C) using a TORX T30 bit, then pull out the SRS unit.
