SRS Unit Connectors

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

When diagnosing or troubleshooting at an SRS unit connector (A), use the terminal test port (B) below the terminal (C) you need to check. Gently insert the pin probes of the tester or jumper wire at the terminal test port from the terminal side.

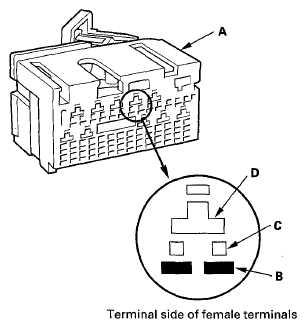

Fig 1: Identifying SRS Unit Connectors Terminal

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

Do not insert the pin probes of the tester or jumper wire at the terminal port and SRS short canceller terminal port (D).
To prevent damage to the connector terminals, do not insert the test equipment probes, paper clips, or other substitutes as they can damage the terminals. Damaged terminals cause a poor connection and an incorrect measurement.
