Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

SRS short canceller 070AZ-SAA0100

NOTE:

To prevent damage to the connector cavity, insert a short canceller straight into the cavity from the terminal side.
Before installing a short canceller, wash it with electrical contact cleaner, then dry it with compressed air.
Do not use a short canceller if it is damaged.
Make sure to remove the short canceller before reconnecting the SRS unit connector.
Some systems store data in memory that is lost when the battery is disconnected. Before disconnecting the battery, refer to BATTERY TERMINAL DISCONNECTION AND RECONNECTION .

When SRS unit connectors A (39P) and B (39P) are disconnected, a short circuit is automatically created in the connector to prevent an airbag or tensioner from deploying. The circuit may need to be opened when diagnosing the system. Insert a short canceller (070AZ-SAA0100) in the specified cavities when necessary to keep the circuit open for diagnosis.

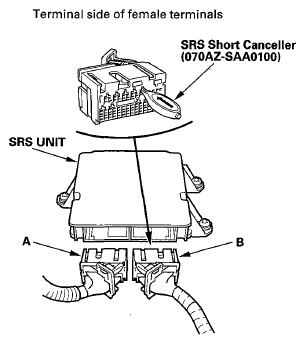

Fig 1: View Of Short Canceller (070AZ-SAA0100) In Specified Cavities

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Terminal numbers are shown from the wire side of the female terminals. Insert the short canceller(s) into the cavities on the terminal side of the connector.

Fig 2: Identifying SRS Unit Connector A (39P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying SRS Unit Connector B (39P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
