SRS Unit Connectors: Disconnecting

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

To release the lock, pull the lever (A) while pushing down the lock (B), then pull out the connector (C).

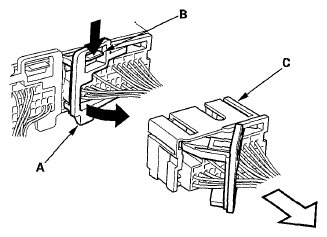

Fig 1: Identifying Lever, Lock & Connector
G05960410Courtesy of AMERICAN HONDA MOTOR CO., INC.
