Airbag Handling and Storage

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Do not disassemble an airbag. It has no serviceable parts. Once an airbag has been deployed, it cannot be repaired or reused.

For temporary storage of an airbag during service, observe the following precautions.

Store the removed airbag with the pad surface up. Never put anything on the airbag.

Fig 1: View Of Airbag With Pad Surface Up
Courtesy of AMERICAN HONDA MOTOR CO., INC.
To prevent damage to the airbag, keep it away from any oil, grease, detergent, or water.

Fig 2: Identifying Precautions For Prevent Damage To Airbag
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Store the removed airbag on a secure, flat surface away from any high heat source (exceeding 200°F/93°C).

Fig 3: Identifying Precautions For Store Removed Airbag On Secure
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Never do electrical tests on the airbags, such as measuring resistance.

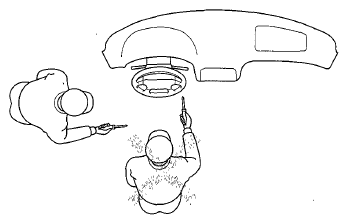

Do not position yourself in front of the airbag during removal, inspection, or replacement.

Fig 4: Identifying Precautions For Do Not Position Yourself In Front Of Airbag During Removal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
For proper disposal of a damaged airbag, refer to airbag disposal (see AIRBAG AND TENSIONER DISPOSAL ).

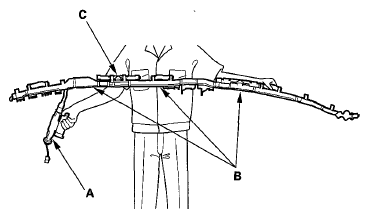

The side curtain airbag module assembly is a long, jointed part containing an inflator (A), a flexible bag (B), and brackets (C). When removing or installing the side curtain airbag inflator assembly, never:

Drop the airbag assembly.
Cut, tear, or unwrap the tape strips.
Handle the flexible bag (B).
Excessively bend or unfold the airbag.

Fig 5: Identifying Side Curtain Airbag Inflator Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
