ODS Unit Replacement: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Disconnect the passenger's side airbag harness 2P connector (see step 5 on SEATS WITH SIDE AIRBAGS  ).
  3. Remove the front passenger's seat-back cover/pad (see FRONT SEAT-BACK COVER/PAD REPLACEMENT ).

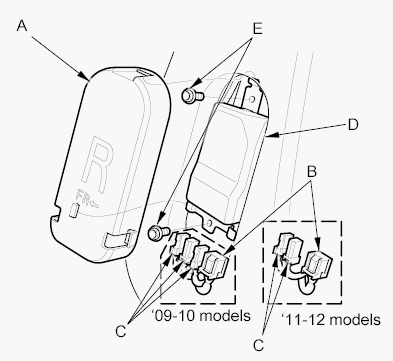

  4. Remove the cover (A), then disconnect the ODS unit 18P connector (B) and OPDS sensor connectors (C) from the ODS unit (D).
    Fig 1: Identifying ODS Unit 18P & Sensor Connectors
    G05960630Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the two bolts (E) and the ODS unit.
