Front Passenger's Weight Sensor Replacement: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Make sure to install the harness wires so they are not pinched or interfering with other parts.
The front passenger's weight sensor are part of the seat track and must be replaced as an assembly.

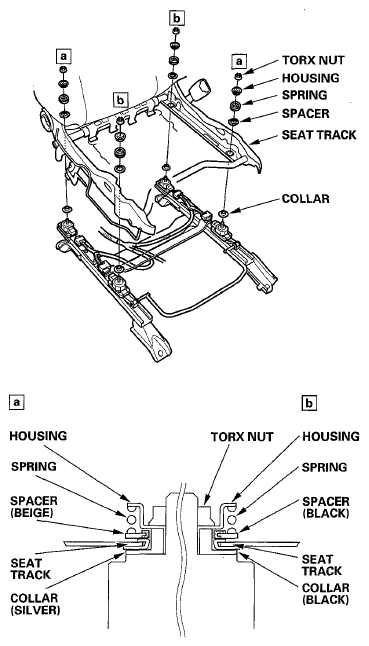

The spacers and collars can be identified by their color. Make sure to install the spacers and collars as shown in illustration.

Install the new front passenger's seat slide assembly under the seat track.

Fig 1: Identifying Front Passenger's Seat Slide Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

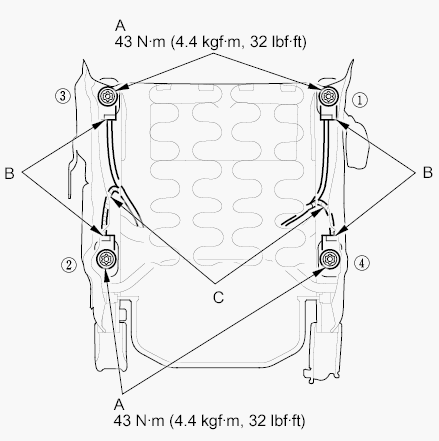

When tightening the TORX nuts (A), begin with (1), and tighten them in a crisscross pattern in two or more steps.

Fig 2: Sensor Connectors & Weight Sensors With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the sensor connectors (B) to the weight sensors.
NOTE: The sensor connectors with the white tape (C) connect to the front sensors.
Reassemble the front passenger's seat cushion cover/pad (see FRONT SEAT CUSHION COVER/PAD REPLACEMENT ).
Reinstall the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Clear any DTCs with the HDS (see CLEAR THE DTC MEMORY ).
Confirm proper system operation: Turn the ignition switch to ON (II); the SRS indicator should come for about 6 seconds and then go off.
