Front Impact Sensor Replacement: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the left or right engine compartment wire harness 2P connector (A) to the front impact sensor (B).
    Fig 1: Identifying Engine Compartment Wire Harness 2P Connector & Front Impact Sensor
    G05960634Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the front impact sensor with a new TORX bolt (A), using a TORX T30 bit.

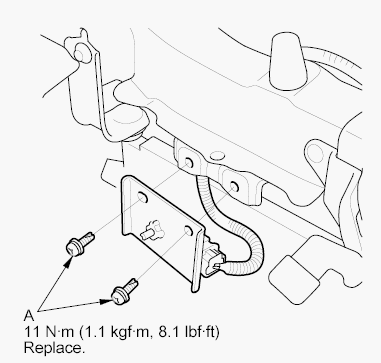

    Fig 2: Front Impact Sensor & Bolts With Torque Specifications
    G05960635Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  4. Clear any DTCs with the HDS (see CLEAR THE DTC MEMORY ).
  5. Confirm proper SRS operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.
  6. Reinstall all removed parts.
