Driver's Seat Position Sensor Replacement: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not turn the ignition switch to ON (II), and do not connect the battery cable while removing the driver's seat position sensor.

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
Remove the recline cover (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION ).
Disconnect the seat position sensor harness 2P connector (A) from the driver's seat position sensor (B).

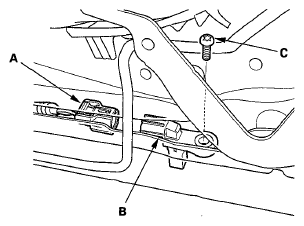

Fig 1: Identifying Seat Position Sensor Harness 2P Connector & Driver's Seat Position Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the TORX bolt (C) using a TORX T30 bit, then remove the driver's seat position sensor (B) through the space between the seat track and slide as shown below.

Fig 2: Locating Driver's Seat Position Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
