Driver's Seat Position Sensor Replacement: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Be sure to install the harness so it does not pinched or interfere with other parts.
  • Do not turn the ignition switch to ON (II), and do not connect the battery cable while installing the driver's seat position sensor.
  1. Install the driver's seat position sensor (A) with a new TORX bolt (B).

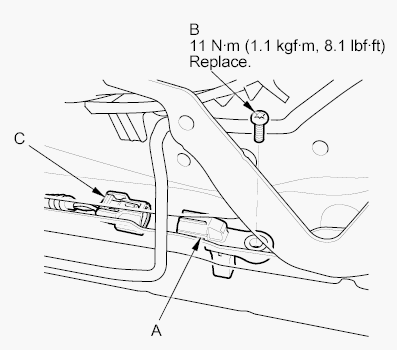

    Fig 1: Driver's Seat Position Sensor & TORX Bolt With Torque Specifications
    G05960638Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the driver's seat position sensor 2P connector (C) on the driver's seat position sensor harness.
  3. Install the recline cover (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION ).
  4. Do BATTERY TERMINAL DISCONNECTION AND RECONNECTION .
  5. Clear any DTCs with the HDS (see CLEAR THE DTC MEMORY ).
  6. Check the operation of the driver's seat position sensor with the HDS (see DRIVER'S SEAT POSITION SENSOR OPERATION CHECK  ).
  7. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
