Driver's Airbag Replacement: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.

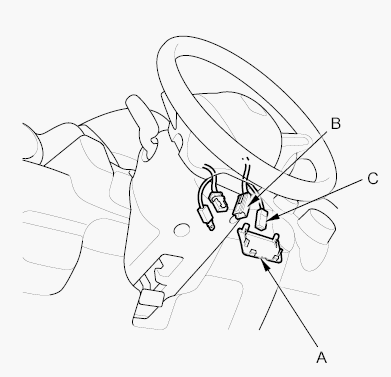

  2. Remove the access panel (A) from the steering wheel, then disconnect the driver's airbag 4P connector (B) and horn switch 1P connector (C) from the cable reel.
    Fig 1: Identifying Driver's Airbag 4P & Horn Switch 1P Connectors
    G05960587Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two TORX bolts (A) using a TORX T30 bit.
    Fig 2: Identifying Driver's Airbag With Bolts
    G05960588Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the driver's airbag (B).
