Checking and Adjusting the Headliner/Pillar Trim Overlap

To prevent the side curtain airbag from deploying and damaging the pillar trim, the overlap between the headliner and pillar trim must be less then 8 mm (0.3 in.). To check the overlap, do this:

1. Install the headliner (A) and the pillar trim (B).
   Fig 1: Identifying Headliner & Pillar Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   This graphic shows A-pillar.

2. Apply masking tape to the headliner, mark the upper edge of each pillar trim.
   Fig 2: Identifying Masking Tape Applying Area

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   This graphic shows A-pillar.

3. Remove the pillar trim, and measure the headliner overlap.
   • If the overlap is less than 8 mm (0.3 in.), remove the tape, and install the pillar trim.
   • If the overlap is more than 8 mm (0.3 in.), go to step  4.

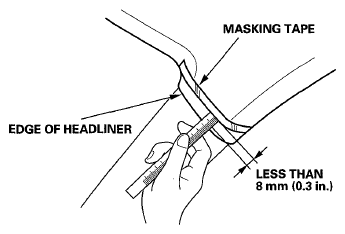

   Fig 3: Measuring Headliner Overlap
   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   This graphic shows A-pillar.

4. Carefully trim the headliner with a utility knife, reducing the overlap to less than 8 mm (0.3 in.).

   This graphic shows A-pillar.

   Fig 4: Trimming Headliner With Utility Knife

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the tape, and install the pillar trim.
