Cable Reel Replacement: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before installing the steering wheel, align the front wheels straight ahead.
  2. If not already done, disconnect the negative cable from the battery, then wait at least 3 minutes.
  3. Set the turn signal canceling sleeve (A) so that the projections (B) are aligned vertically.
    Fig 1: Identifying Signal Canceling Sleeve
    G05960616Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Carefully install the cable reel (A) on the steering column shaft. Then connect 20P connector (B) to the cable reel, and connect the 4P connector (C) to the dashboard wire harness 4P connector (D).
    Fig 2: Identifying Cable Reel & 20P Connector
    G05960617Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the steering column covers.

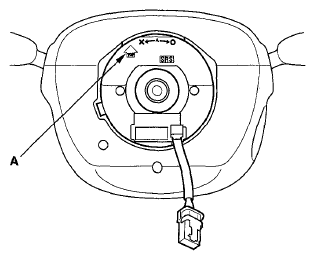

  6. If necessary, center the cable reel (new replacement cable reels come centered). Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise (about three turns) until the arrow mark (A) on the cable reel label points straight up.
    Fig 3: Identifying Mark On Steering Column Cover
    G05960618Courtesy of AMERICAN HONDA MOTOR CO., INC.

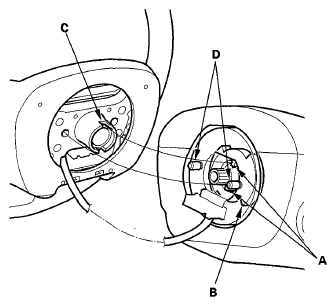

  7. Position the two tabs (A) of the turn signal canceling sleeve (B) as shown below, and install the steering wheel on to the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of the cable reel and tabs of the turn signal canceling sleeve. Do not tap on the steering wheel or steering column shaft when installing the steering wheel.
    Fig 4: Identifying Positioning Tabs Of Turn Signal Canceling Sleeve
    G05960619Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install and torque a new steering wheel bolt (A), then reconnect the connectors.
    Fig 5: Steering Wheel Bolt With Torque Specifications
    G05960620Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the driver's airbag (see INSTALLATION  ).
  10. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  11. Connect the HDS and clear any DTCs.
  12. After installing the cable reel, confirm proper system operation:
    • Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.
    • After the SRS indicator has turned off, turn the steering wheel fully left and right to confirm the SRS indicator does not come on.
    • Make sure the horn works.
    • Make sure the cruise control buttons work.
    • Make sure the steering wheel audio controls work.
    • Make sure the SEL/RESET buttons works.
    • Make sure there are no DTCs.
