Seat Belt Tensioner

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the B-pillar lower trim (see B-PILLAR UPPER/LOWER TRIM ).
  2. Disconnect the floor wire harness 4P connector (A) from the seat belt tensioner. Pull the seat belt out all the way and cut it.

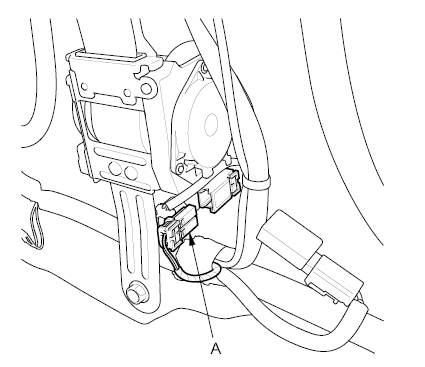

    Fig 1: Identifying Floor Wire Harness 4P Connector
    G00491911Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Cut off each connector, and strip the ends of the wires. Twist each pair of unlike colored wires together, and clip an alligator clip (A) from the deployment tool to each pair. Place the deployment tool at least 30 feet (10 m) away from the vehicle.
    NOTE:
    • Place the deployment tool at least 30 ft (10 m) away from the vehicle.
    • The driver's and front passenger's airbags have dual inflators. Twist each pair of unlike colored wires together, and clip an alligator clip to each pair.

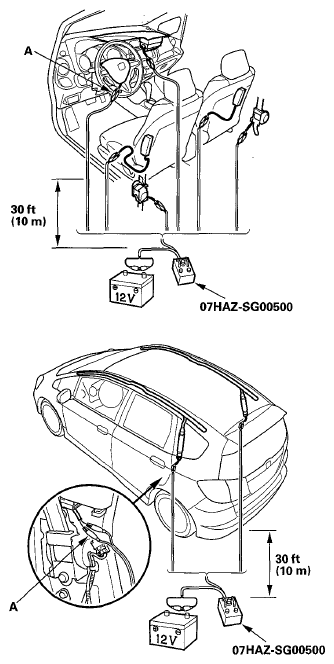

      • Fig 2: Placing Deployment Tool At Least 30 Ft (10 M) Away From Vehicle
      G05960610Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Connect a 12 V battery to the tool.
    • If the green light on the tool comes on, the igniter circuit is defective and cannot deploy the component. Go to Disposal of Damaged Components.
    • If the red light on the tool comes on, the component is ready to be deployed.
  5. Push the tool's deployment switch. The airbags and tensioners should deploy (deployment is both highly audible and visible: A loud noise and rapid inflation of the bag, followed by slow deflation).
    • If the components deploy and the green light on the tool comes on, continue with this procedure.
    • If a component does not deploy, and the green light comes ON, its igniter is defective. Go to DISPOSAL OF DAMAGED COMPONENTS .
    • During deployment, the airbags can become hot enough to burn you. Wait 30 minutes after deployment before touching the airbags.
  6. Dispose of the complete airbag. No part of it can be reused. Place it in a sturdy plastic bag (A), and seal it securely. Dispose of the deployed airbag according to your local regulations.
Fig 3: Identifying Sturdy Plastic Bag
G05960611Courtesy of AMERICAN HONDA MOTOR CO., INC.
