Maintenance Display

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The maintenance minder is an important feature of the information display. Based on engine and transmission operating conditions, the Fit's onboard computer (ECM/PCM) calculates the remaining engine oil and the transmission fluid life. The system also displays the remaining engine oil life along with the codes for other scheduled maintenance items needing service.

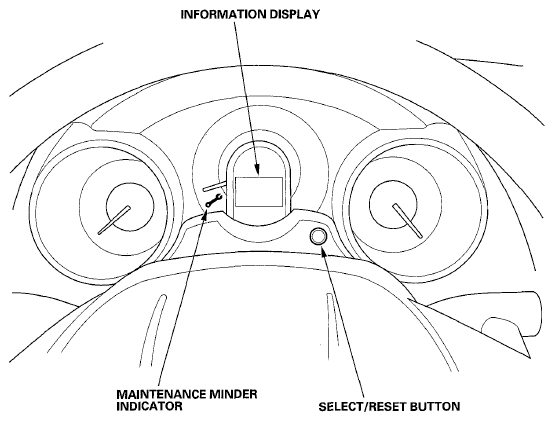

Fig 1: Identifying Information Display
G05952249Courtesy of AMERICAN HONDA MOTOR CO., INC.
