Lubricants and Fluids
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
For details of lubrication points and type of lubricants to be applied, refer to various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.

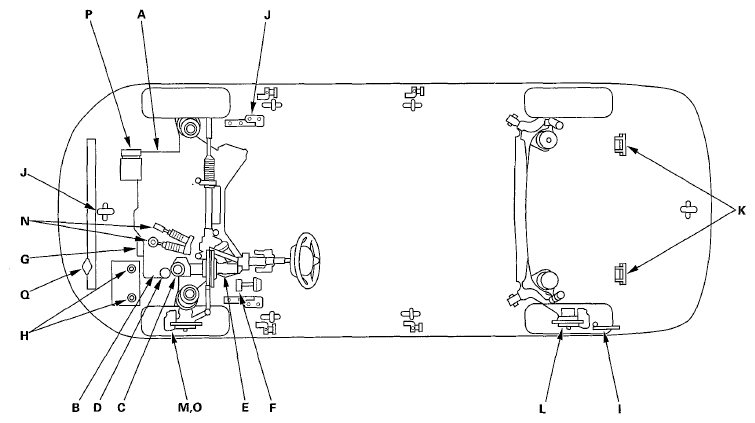

LUBRICANTS SPECIFICATION TABLE
| Lubrication Points | Lubricant | |
|---|---|---|

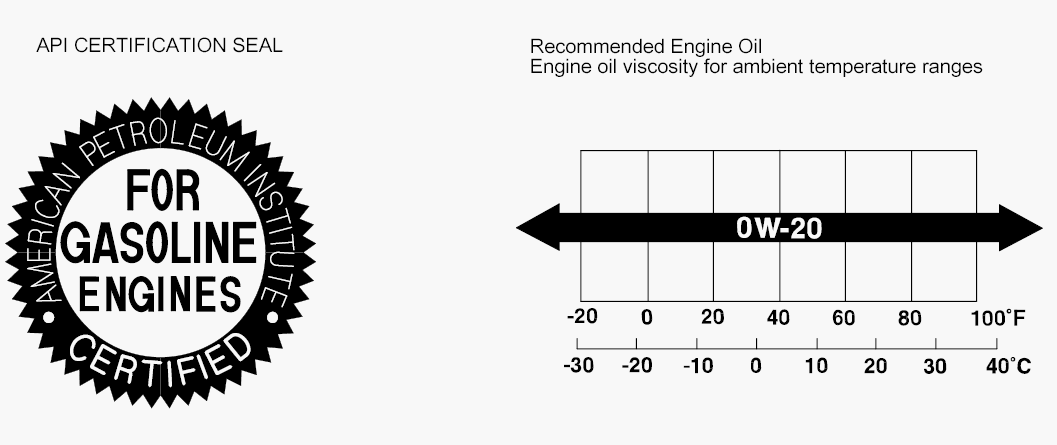

| A | Engine | Honda Motor Oil: 0W-20 Look for the API certification seal on the oil container Make sure it says "For Gasoline Engines." SAE viscosity: See Fig 1. |
| B | Manual transmission | Honda Manual Transmission Fluid (MTF): Always use Honda MTF. Using motor oil can cause stiffer shifting because it does not contain the proper additives. |
| Automatic transmission | Honda Automatic Transmission Fluid (ATF DW-1): Always use Honda ATF DW-1. Using a non-Honda ATF can affect shift quality. |
|
| C | Brake system (including ABS or VSA lines) | Honda DOT 3 Brake Fluid: Always use Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the life of the system. |
| D | Clutch line (manual transmission) | |
| E | Brake booster clevis pin | Multipurpose Grease |
| F | Clutch master cylinder clevis pin (manual transmission) | |
| G | Release fork (manual transmission) | |
| H | Battery terminals | |
| I | Fuel fill door | |
| J | Hood hinges and hood latch | |
| K | Tailgate hinges | |
| L | Rear brake shoe linkage | Molykote 44MA |
| M | Shift cable ends (manual transmission) | Honda Silicone Grease: P/N 08C30-B0234M |
| N | Caliper piston boots, caliper pins, and pin boots | |
| O | Air conditioning compressor | Compressor oil: SP-10 (P/N 38897-P13-A01AH) for refrigerant HFC-134a (R-134a) |
| P | Cooling system | Honda Long Life Antifreeze/coolant-Type 2 |
